AccuTools A10757-1XL TruBlu Starter XL Evacuation Kit

$204.95
SKU A10757-1XL
Currently 4 in stock.

AccuTools A10757-1XL TruBlu Starter XL Evacuation Kit (1 Hose, 1.5 meter)

Products usually ship within 1 business day.

A Simply Better Vacuum Hose.


These hoses are freaky fast! TruBlu hose has a 3/4″ internal diameter delivering 16 CFM of conductance speed at 1,000 microns. Evacuate 80x faster than 1/4″ I.D. hoses and up to 6x faster than other “vacuum rated” hoses on the market today.

The TruBlu hose is extremely tough, ultra-smooth bored, yet the flexible wire reinforced PVC means it just won’t kink or collapse. TruBlu is resistant to abrasion and crushing and can be knocked back to round if accidently flattened. Additionally, the UV compounding has excellent weather resistance to provide years of reliable service.

The proprietary polymer blend has extremely low air permeation, water vapor adhesion, and outgassing making this hose ideal for vacuum service. In short TruBlu’s ultra-smooth large bore reduces flow loss and other losses providing the fastest evacuation of any hose on the market today.


Dedicated to Vacuum

TruBlu is engineered for vacuum. Most manufacturers of “evacuation hoses” use refrigerant transport hose and “recertify” it for use in vacuum applications. Refrigerant transfer hose is designed for refrigerant transfer. The materials though are simply not engineered for evacuation. Pick one up; it will be stiff, heavy, gassy and hydroscopic. Additionally, refrigerant transport hose (charging hoses) should never be used for refrigerant charging and evacuation. Oils and contaminants will line the hose absorbing moisture making a fast and deep vacuum almost unattainable. If you want dedicated, you want TruBlu.


A Better Evacuation System

A fast evacuation is a function of the components used in the process. TruBlu is the only system engineered for HVAC that uses industrial rated vacuum hose as well as vacuum rated KF fittings for quick hose configuration and vacuum tight connections.


One Hose Fits All

With our Patent Pending KF fitting designed specifically for HVAC applications, a TruBlu hose can be configured in the field for the pump and service valve connections from 1/4″, 3/8″, to even 1/2″ fittings (even those with 90-degree adapters). Each fitting and valve has been carefully engineered from the core tools to the core depressors to assure vacuum tight connections ideal for HVAC applications. While all mechanical fittings leak, TruBlu fittings and hoses can achieve leaks rates so low that vacuums of 20 microns at the hose ends are easily possible even with the smallest vacuum pumps.


Size Matters

Using a 3 CFM pump or larger? You need TruBlu! Attaching a 1/4″ hose to a vacuum pump can reduce the flow to as little as 0.7 CFM. No matter how large your pump is, (and remember size does matter!) it is limited or restricted by the hoses you attach to it. The deepest vacuum a pump can draw -14.7 PSI, so if you want more flow you need a bigger hose. If you want more flow you need TruBlu.

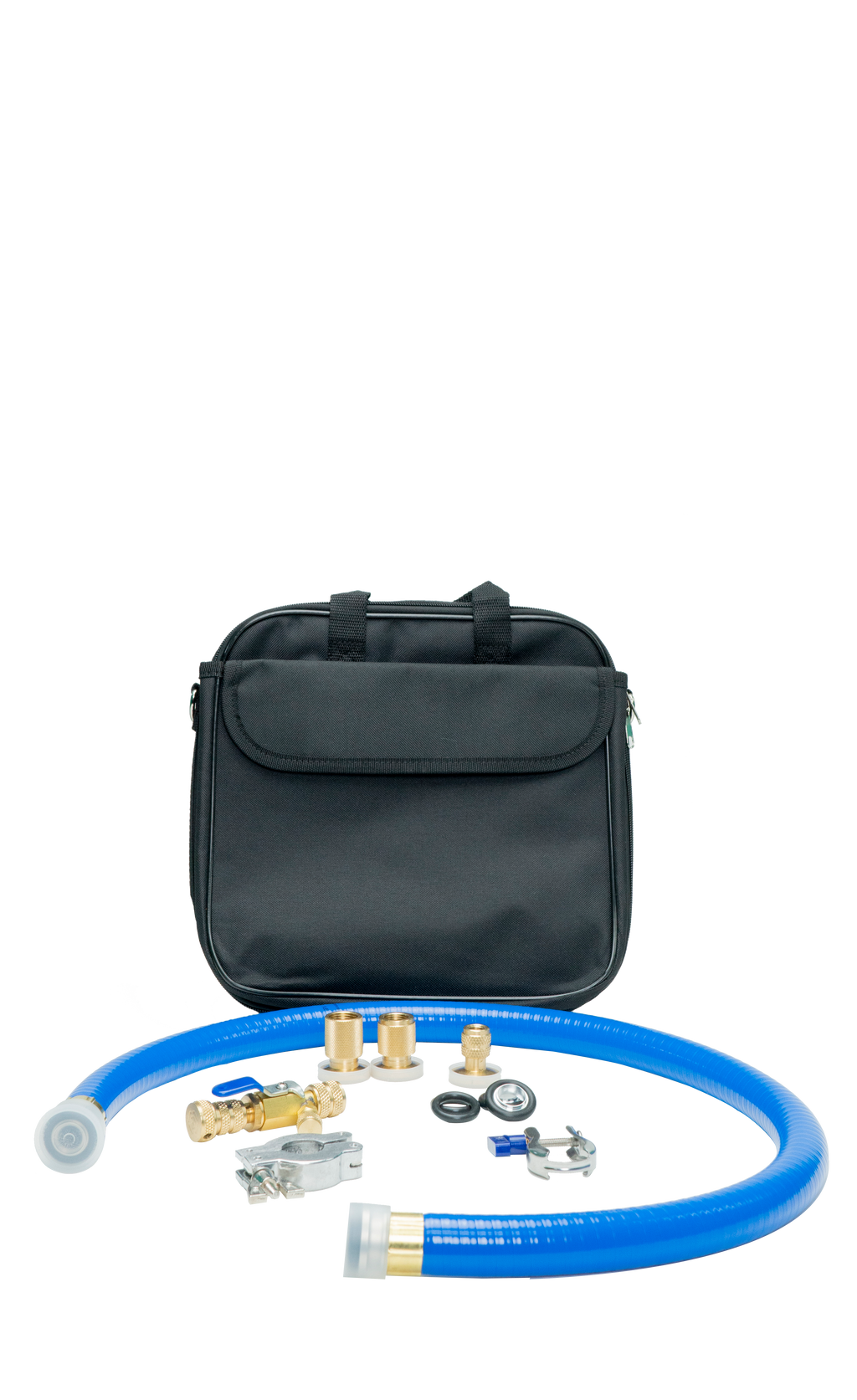

Kit Includes:

  • TruBlu Hose (1.5 meter)
  • Stainless Steel Clamp
  • Aluminum Clamp
  • Replacement O-Rings (4)
  • Adapter KF-16 to 1/4 FFL
  • Adapter KF-16 to 3/8 FFL
  • Adapter KF-16 to 1/2 FFL
  • Core Removal Tool
  • Carrying Case



TruBlu Evacuation Kit Spec Sheet
