Caleffi 533351HA PresCal™ Compact Pressure Reducing Valve with Gauge, 3/4" FNPT Union x FNPT - Edmondson Supply

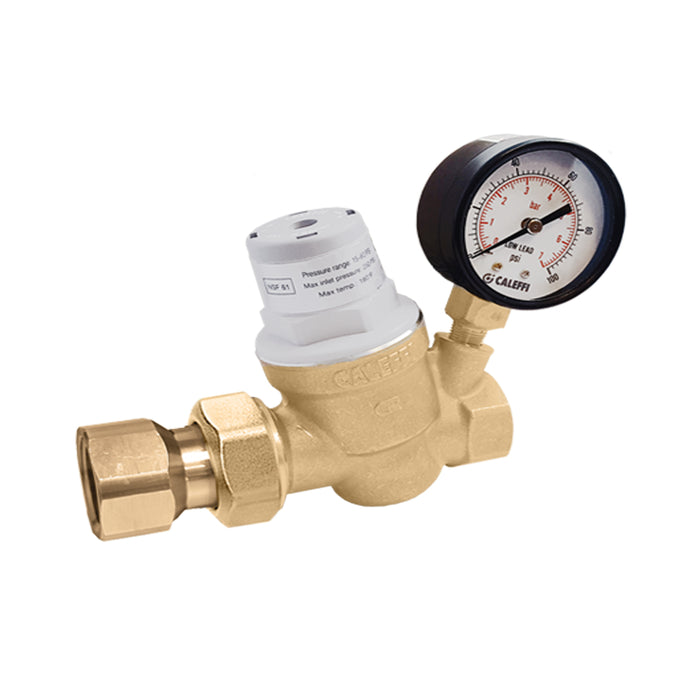

Caleffi 533351HA PresCal™ Compact Pressure Reducing Valve with Gauge, 3/4" FNPT Union x FNPT

Sold out
$77.30
$49.58
SKU 533351HA
Currently 0 in stock.

Caleffi 533351HA PresCal™ Compact Pressure Reducing Valve with Gauge, 3/4" FNPT Union x FNPT

The Caleffi PresCal™ 533H compact pressure reducing valve is precision engineered to deliver accurate pressure regulation at a competitive price. Low internal pressure losses produce excellent falloff performance enabling more flow capacity to fixtures. NSF 61 certification to 180°F temperature, anti-scale components and a variety of inlet connection styles add to the high value of the most recognized PRV in the world.

FEATURES

  • Most recognized PRV in the world:  Millions installed in over 60 countries around the world.
  • Removable self-contained cartridge with stainless steel mesh filter:  Maximum debris protection and convenient in-pipe cleaning or replacement.
  • Precision engineered:
    • Low-lead DZR “Ecobrass” alloy forging resists corrosion from hard water, chlorine and oxygen.
    • Low friction, high-performance moving parts for stable, accurate pressure control. Results in excellent falloff performance and quiet operation.
    • Peroxide-cured EPDM elastomers for chloramine resistance and long life.
  • Installation flexibility:  Variety of inlet union connections: Sweat, NPT, Press, PEX crimp and PEX expansion.
  • Tamper-resistant cap:  Black tamper-resistant cap is included to prevent unauthorized set point adjustments.
  • Hot water boost system compatible:  Rated to 180ºF. Certified to NSF 61, ASSE 1003, CSA B356 and NSF 372.



PERFORMANCE

  • Max. Working Pressure:  250 psi (17.25 bar)
  • Setting Pressure Range:  15 - 80 psi (1.0-5.5 bar)
  • Factory Setting:  45 psi (3 bar)
  • Max. Working Temperature:  180°F (80°C)



Compliance with the following codes:  IPC, IRC, UPC and NPC for use in accordance with the U.S. and Canadian plumbing codes

Compliance with the following standards:
     ASSE 1003
     CSA B356
     NSF/ANSI 61, Drinking Water System Components - Health Effects
     Reduction of Lead in Drinking Water Act, California Health and
                  Safety Code 116875
      S.3874, Reduction of Lead in Drinking Water Act
      UL 2043, Plenum Rating
