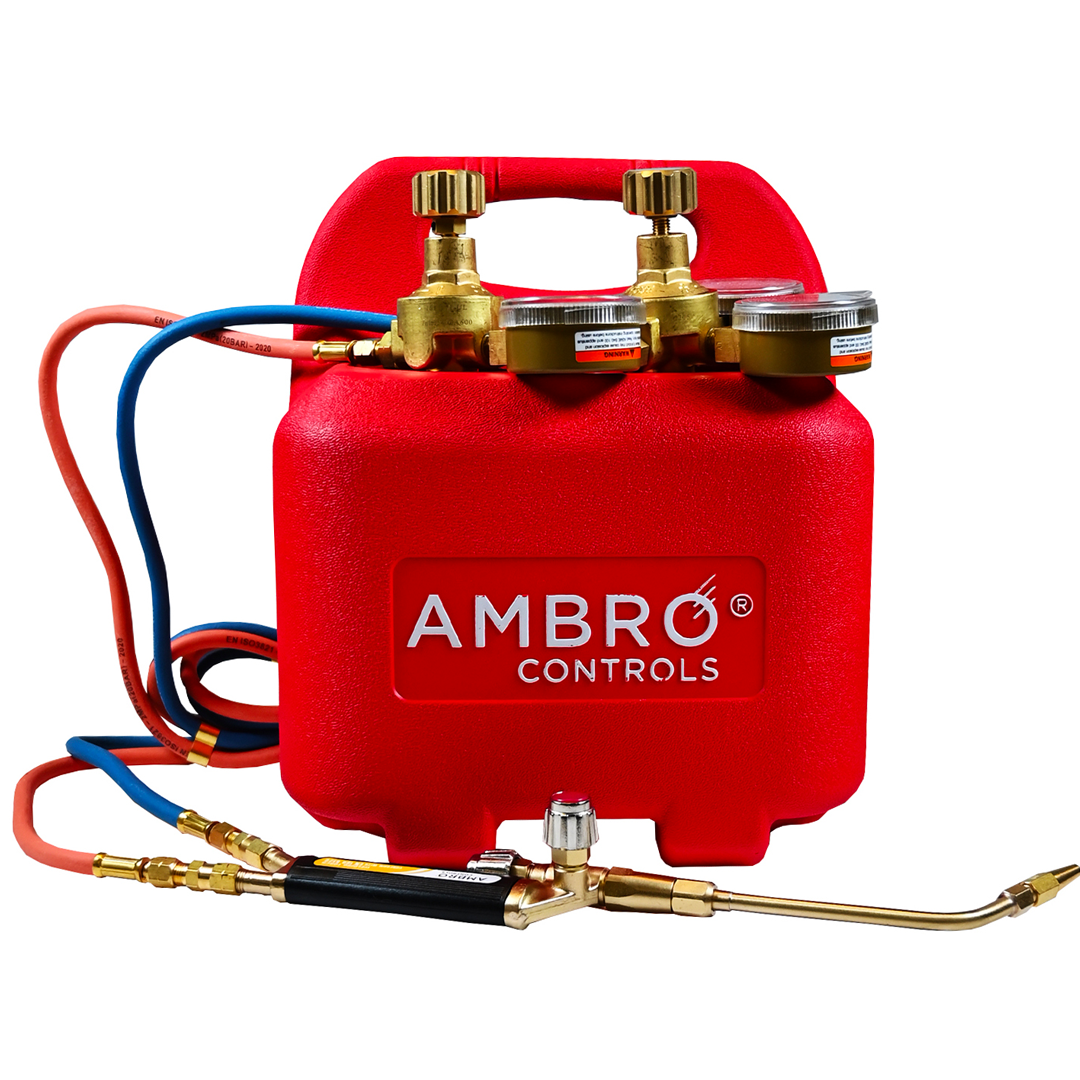

Ambro Controls 1811168-1 Oxyset Mobile Brazing System
Ambro Controls 1811168-1 Oxyset Mobile Brazing System
The Oxyset is a lightweight, portable welding & brazing system for use with disposable gas cylinders. Complete with an easy-carry cylinder stand, the Oxyset is ideal for highly-mobile tradespeople or for working in hard-to-reach areas.
A mixture between oxygen and gas fuel is ideal in many applications due to its adjustable heat output, this kit is suitable for a variety of applications including: welding, brazing, silver soldering and heating. The Oxyset mobile brazing kit includes the following items: Welding Torch, 2 x Check valves (torch end), Oxygen regulator with contents & pressure out gauge, MAP-Pro regulator with outlet gauge, 2 x Nozzles, Flint sparker, Spanner and 6.5ft Twin hose assembly.
- Designed for HVAC and Plumbing contractors

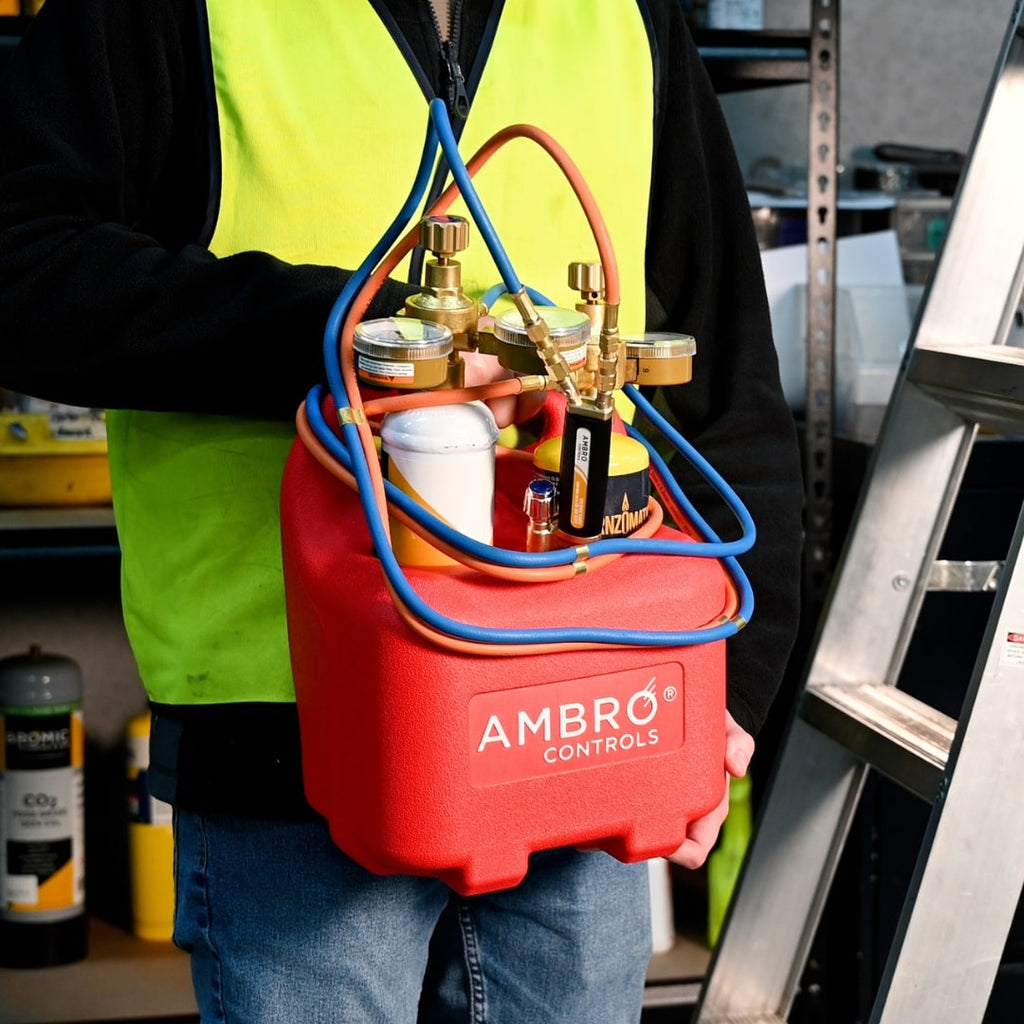

- Compact, lightweight & ultra-portable
- 2 Nozzle sizes included
- For use with MAP-Pro & Oxygen cylinders, sold separately

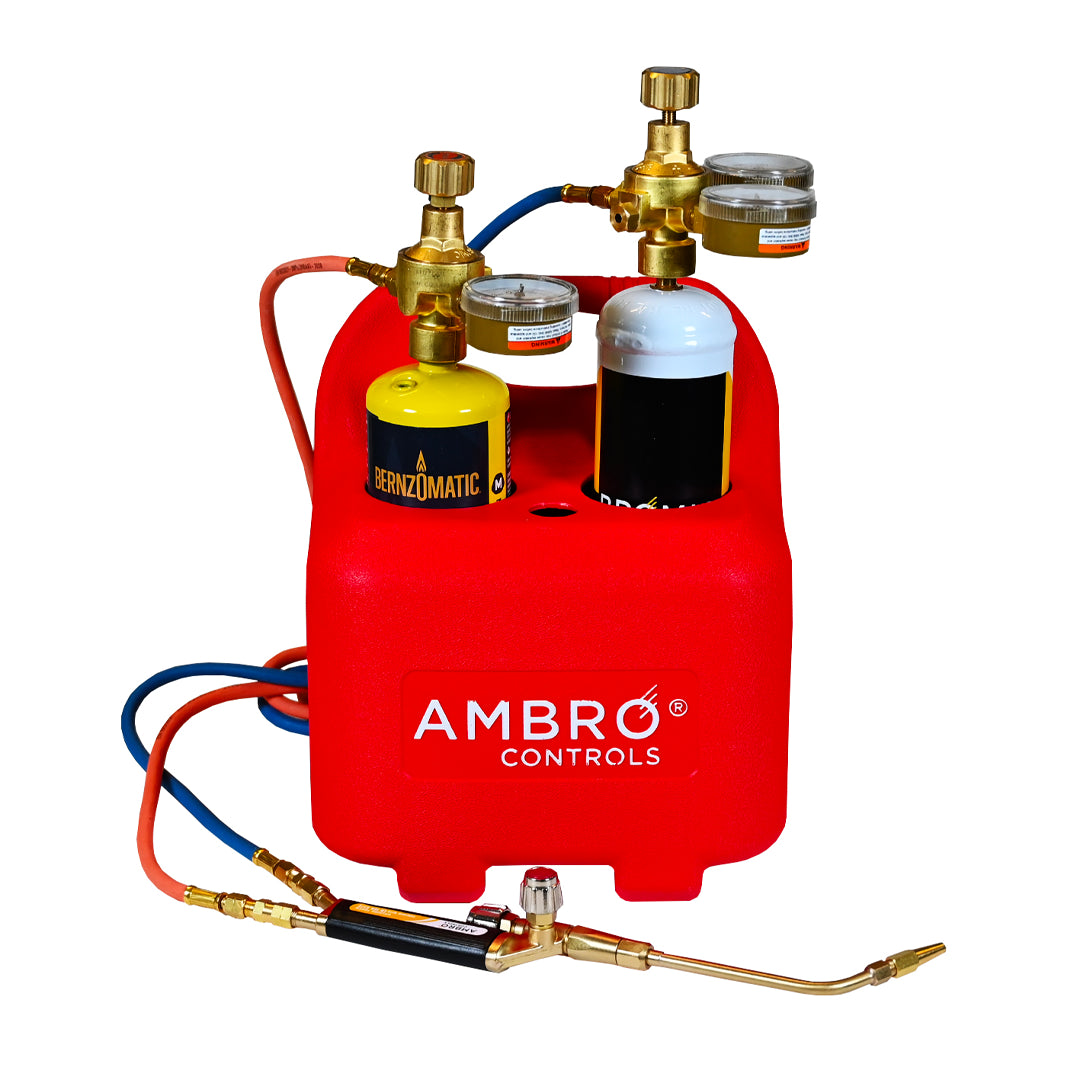

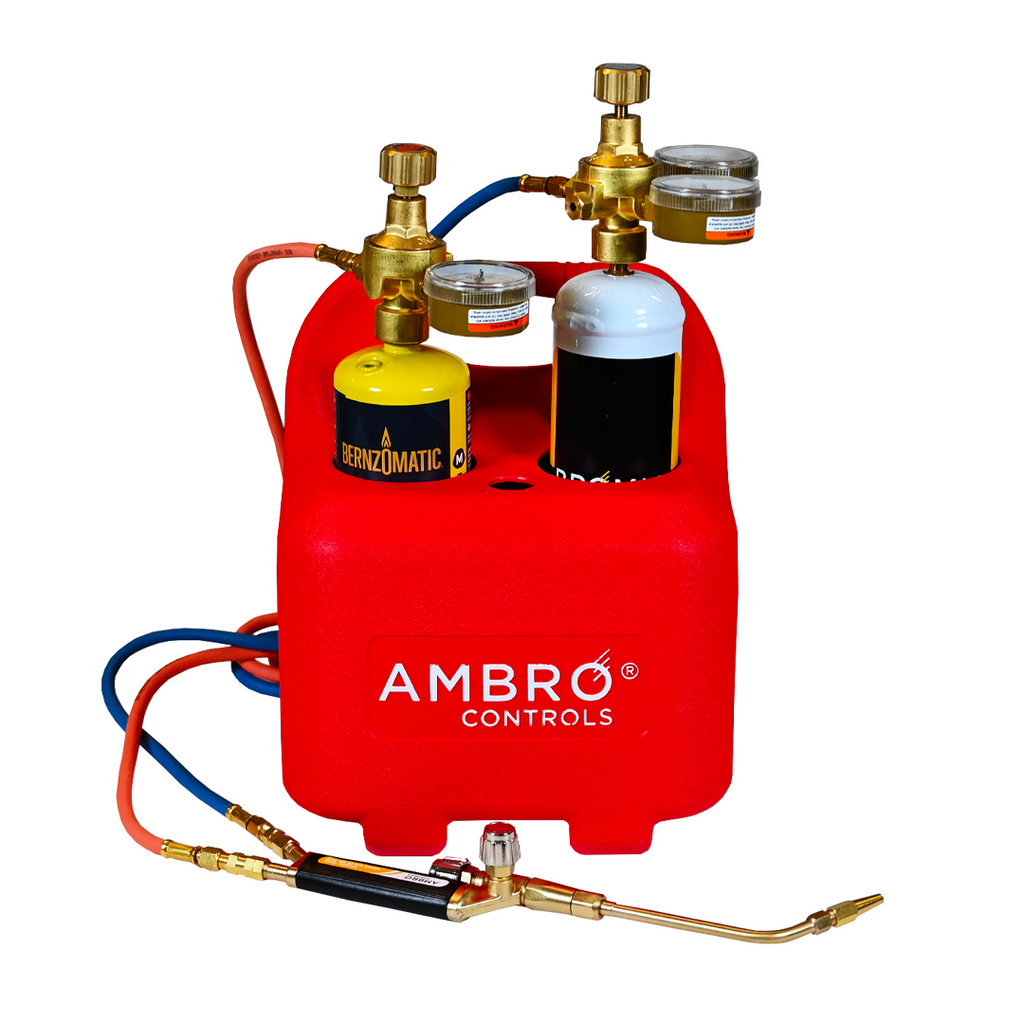

*Map-Pro and Oxygen Cylinders shown for display purposes. Not included with kit.
Specifications
| SKU: | 1811168-1 |
| Application: | Heating, Silver Soldering, Brazing, Cutting |
| Fuel Type: | Designed for use with MAP-Pro and Oxygen (sold separately) |
| Hose Connection: |
1 x Blue oxygen hose (6.5ft length, 1/8” ID, CGA20) 1 x Orange gas hose (6.5ft length, 1/8” ID, CGA21) |
| Nozzle Sizes: | 3/32” and 5/64” |
| Regulator Connections: |
1 x Blue oxygen regulator with 2 gauges (inlet thread is M12x1, outlet thread is CGA20) 1 x Orange MAP//Pro (Propylene) regulator with 1 gauge (inlet thread is CGA600, outlet thread is CGA21) |
| Dimensions: | 17″ H x 10″ W |
| Net Weight: | 101 oz |
| Kit Includes: | Welding torch, 6.5ft twin hose, 2 x check valves, Oxygen and Fuel Gas regulators, 2 x Nozzles, Flint sparker, spanner and caddy. |
| Max. Flame Temperature: | ~5400°F (2982°C) |
