UEi EPC TrueRMS Wireless Everyday Professional Clamp Meter
UEi EPC TrueRMS Wireless Everyday Professional Clamp Meter
The UEi EPC is a True-RMS wireless clamp meter designed to tackle the essential tests that HVAC/R professionals perform everyday.
The EPC is safety rated at CATIV 600V 400A/ CATIII 1000V 400A. It's capable of reading AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency via leads, non-contact voltage, resistance, continuity, and diode testing.
This newly designed clamp meter also features an ergonomic overmolded grip, backlit dual display, built-in test lead storage and a separate jaw-mounted test lead holder, a versatile magnetic hanger strap for hands-free testing, and wireless connectivity to the free app, UEi HUB, which allows live readings.

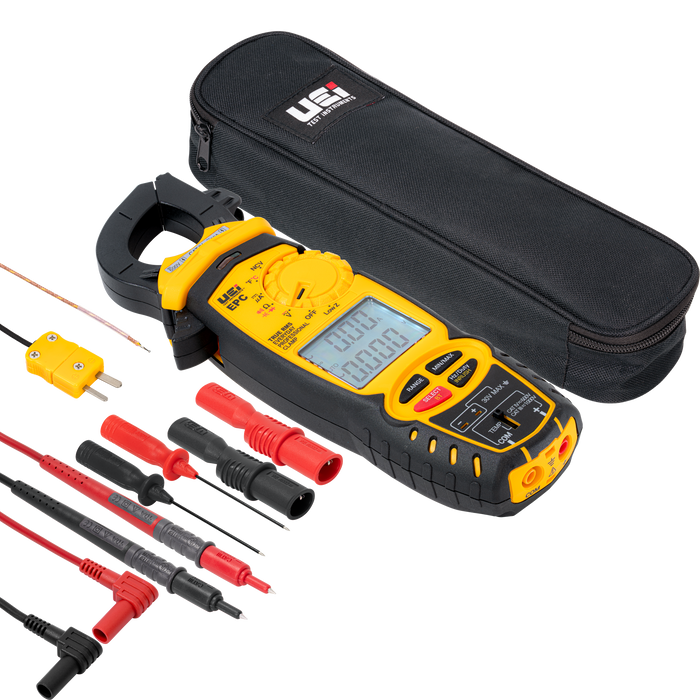

Each EPC includes a set of silicone test leads, threaded alligator clips, threaded back probes, K-Type thermocouple, and a redesigned larger padded case that allows you to leave your test leads plugged in when storing the meter.
Features:
| Dual Display: | Yes |
| Backlight: | Yes |
| Hold: | Yes |
| Min/Max: | Yes |
| Ranging: | Auto/Manual |
| Auto Power Off: | Yes |
| Display Count: | 4,000 |
| Low Battery Warning: | Yes |
| Wireless Output: | Yes |
| Free App Available: | Yes (iOS® and Android™ compatible) |
| Protective Boot/Overmolding: | Yes |
| Magnetic Mount: | Yes |
| Audible and Visual Alerts: | Yes |
| K-Type Input: | Yes |
| Probe/Lead Storage: | Yes |
| Digital: | Yes |
Functions:
| RMS: | Yes |
| AC Current (Amps): | 400A AC |
| DC Micro Current (Amps): | 2000µA |
| AC Volts: | 750V AC |
| DC Volts: | 1000V DC |
| Resistance (Ohms): | 40MΩ |
| Diode: | Yes |
| Capacitance (Farads): | 4000µF |
| Temperature: | -328-2462 °F |
| Frequency (Hertz): | 99.99kHz |
| Duty Cycle (%): | Yes |
| Continuity: | Yes |
| NCV Detection: | Yes |
| Low Z: | Yes |
| LRA Inrush: | Yes |
Standards:
| Ingress Protection: | IP42 |
| ETL Listed: | cETLus UL 61010-1: 2012 |
| CAT Rating: | CATIV 600V/CATIII 1000V |
| FCC/IC Compliant: | FCC |
Includes:
| Quick Start Guide: | Yes |
| Test Leads: | Silicone ATL70 |
| Back Probes: | ABP3 |
| Alligator Clips: | AAC3 |
| Batteries: | AAA (4) |
| Temperature Probe: | ATT29 |
| Pouch/Case: | Yes |
