Klein Tools CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
Save 29%
Original price
$167.98
Current price
$119.99
SKU CL490

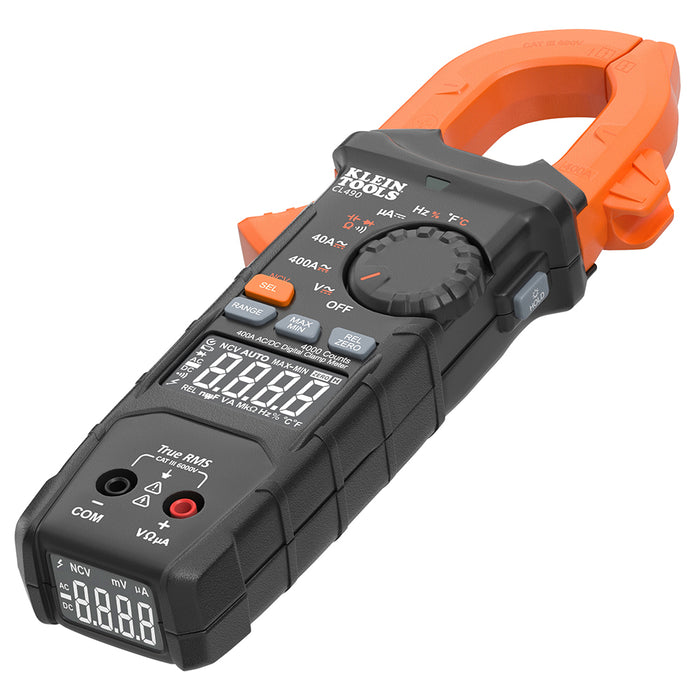

Klein Tools CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity, frequency, and capacitance; all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display.

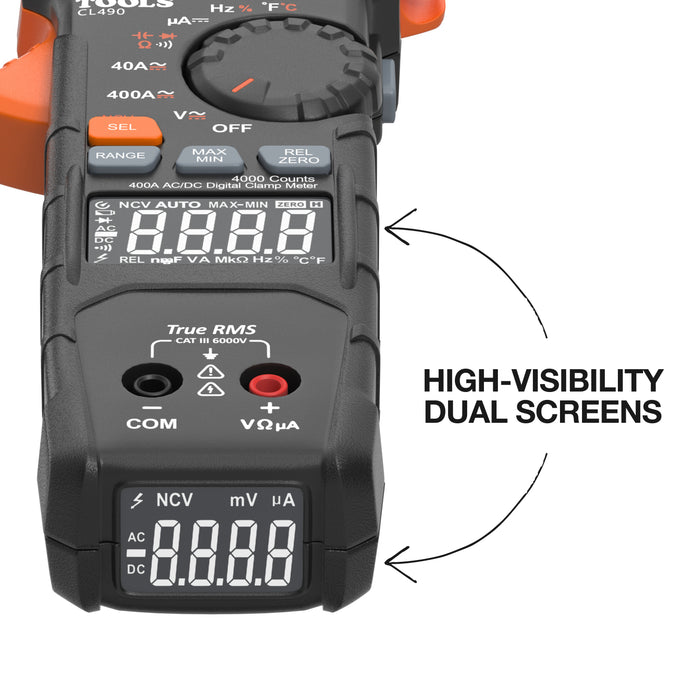

- Dual Display digital clamp meter allows users to see readings in tight space areas
- AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple

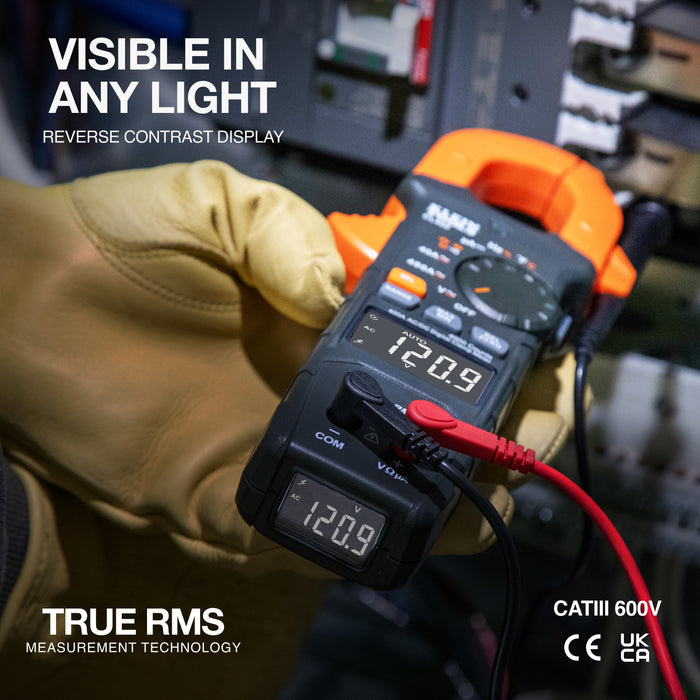

- Backlit reverse-contrast LCDs for clear data and best view-ability in all environments
- Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
- Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb

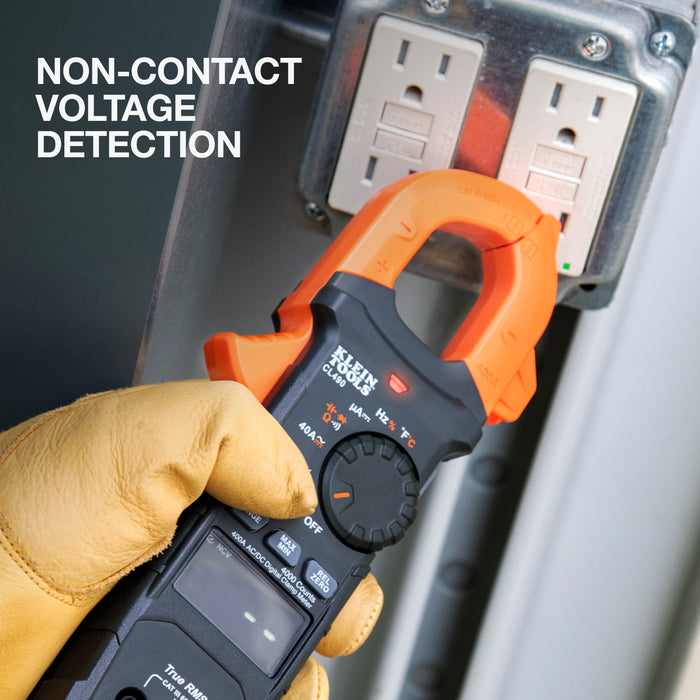

- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
PRODUCT SPECIFICATIONS
| Type: | Dual Screen AC/DC Current TRMS Clamp |
|---|---|
| Application: | Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple |
| Special Features: | Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Material: | ABS/Electronics |
| Batteries: | 2 x AA |
| Auto-Power Off: | Yes, Unless Disabled on Startup |
| Jaw Size: |
1.6'' (4.1 cm)
|
| Drop Protection: | 6.6' (2 m) |
|
Display: Display Size: |
4000 Count Backlit, Hi-Viz Main Display: 1.54'' x 0.86'' (3.9 cm x 2.2 cm) Secondary: 1.04'' x 0.72'' (2.6 cm x 1.8 cm) |
| Functions: | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| Voltage: |
600V AC/DC
|
| Frequency: |
10Hz - 60kHz
|
| Current: |
400A AC/DC
|
| Auto Ranging: | Yes |
| TRMS: | Yes |
| AC Voltage: | 600V |
| DC Voltage: | 600V |
| DC Polarity Indicator: | Yes |
| DC Micro-Amp: | 200µA |
| Temperature Range: | -40° to 1832°F (-40° to 1000°C) |
| Accuracy: | ± (% of Reading + # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65° to 83°F (18° to 28°C) |
| Standard: | CATIII 600V, Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032;Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032 |

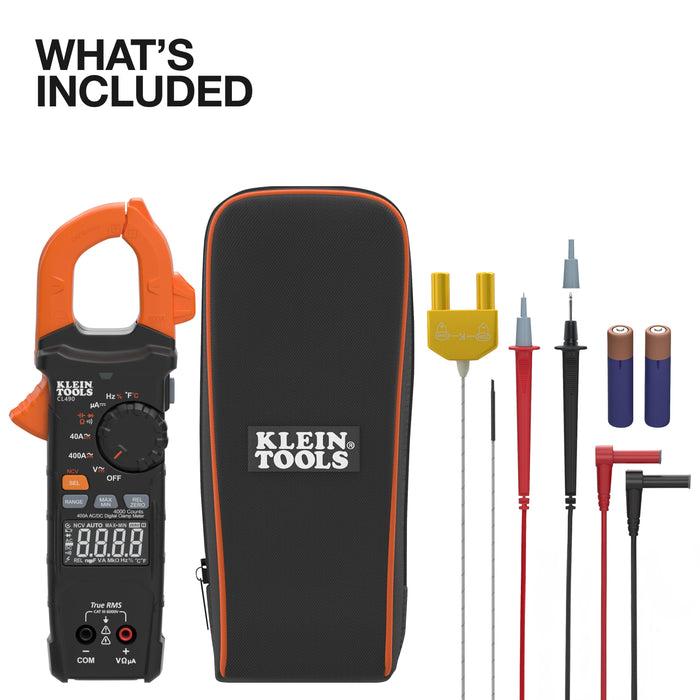

| Included: | Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; 2 x AA Batteries |
| Overall Length: | 3.54'' (9 cm) |
| Overall Height: | 8.46'' (21.5 cm) |
| Overall Width: | 1.5'' (3.8 cm) |
| Weight: | 12.20 oz (346 g) Including Batteries |
