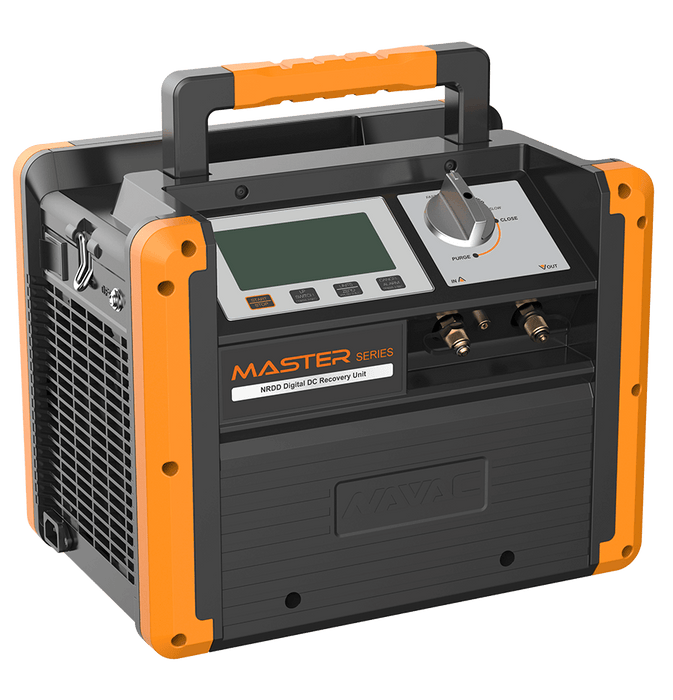

NAVAC NRDD Dual-Cylinder Brushless DC Refrigerant Recovery Unit, A2L Compatible, Master Series

LIGHTWEIGHT, FAST AND COMPACT

The NRDD recovery unit features a Brushless DC Motor making it lightweight and much more efficient, a large backlit display, twin cylinder design with 2-row oversized condenser, oil free compressor and self-purging functionality. The NRDD recovery unit is suitable for all commonly used refrigerants making it the ideal recovery unit!

Leading Technology, Superior Quality, Best Experience.

Empowering You to Work Smarter!

Fastest in Direct Vapor for R410A, R22

• UL verified recovery rate, best performance in its class

Brushless DC Motor

• Light and more efficient

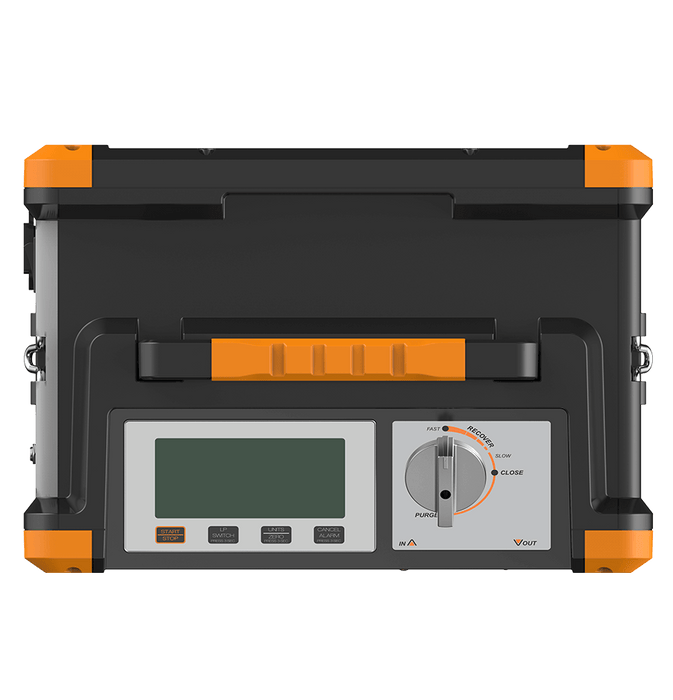

Large Backlit Display

• Easy to read large LCD display
• Backlit for clarity

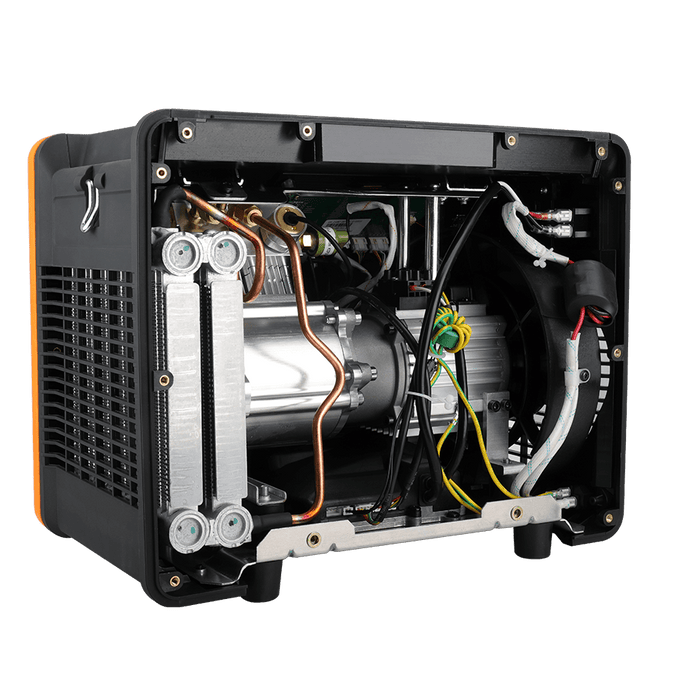

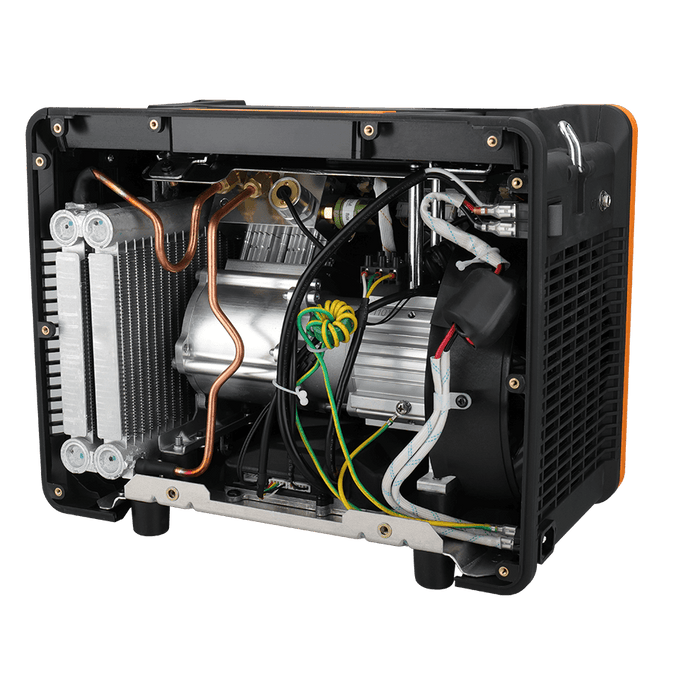

Twin Cylinder with 2-Row Oversized Condenser

• Fast recovery

Oil-Free Compressor

• Suitable for all commonly used refrigerants

Self-purge Function

• Prevent mixing of various refrigerants

 Specifications

• Refrigerant Type:
• Category III:  R-12, R-134a, R-401C, R-500, R-1234YF
• Category IV:  R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-454B, R-502, R-509
• Category V:  R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-507
• Power Supply:  115V / 60Hz
• Motor:  1 HP
• Max Current Draw:  12A
• Compressor:  Oil-less, Air-cooled, Piston style
• Automatic Safety Shut-Off:  558 psi / 38.5 bar
• Recovery Rate (lbs/min):
• R-22
• Direct Vapor:  0.64
• Direct Liquid:  11.11
• Push/Pull Liquid:  17.04
• R-134a
• Direct Vapor:  0.57
• Direct Liquid:  7.85
• Push/Pull Liquid:  12.81
• R-410A
• Direct Vapor:  0.75
• Direct Liquid:  14.44
• Push/Pull Liquid:  18.41
• Dimensions:  14.5" x 9.9" x 11.7"
• Weight:  24.3 lbs

NRDD Spec Sheet

NRDD User Manual

Recovery Unit Comparison Chart
