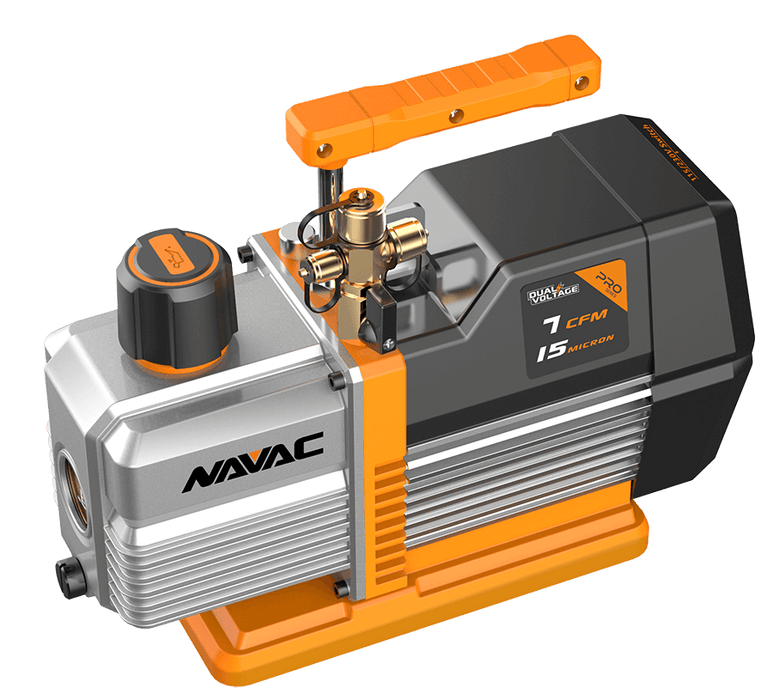

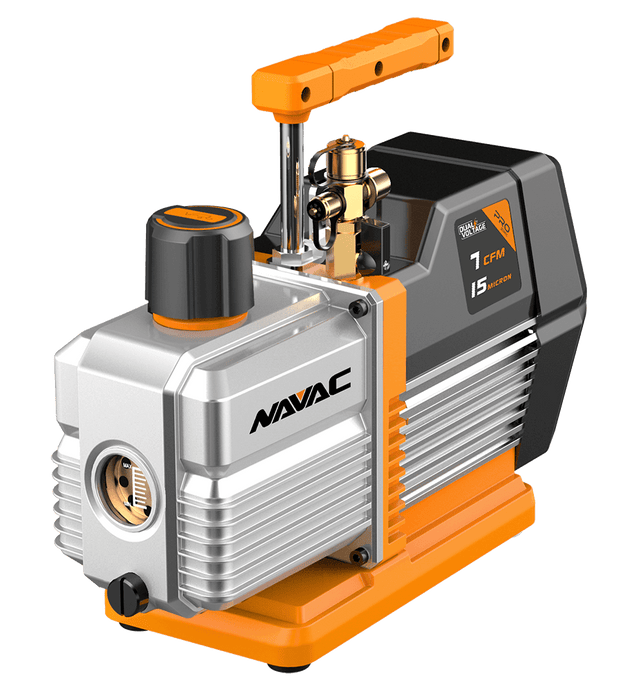

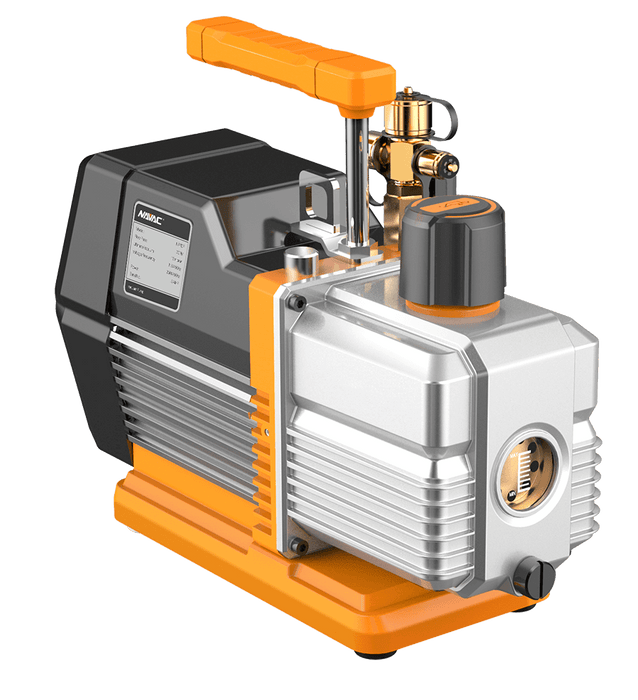

NAVAC NP7DP 7 CFM 2-Stage/Dual-Voltage Vacuum Pump, PRO Series

PERFORMANCE • RELIABILITY

NAVAC NP7DP is a dual-voltage vacuum pump with expanded applications. Its twin-cylinder design delivers an ultimate vacuum down to 15 microns. Integrated cylinder structure coupled with forced oil circulation assure its high performance and reliability. Built-in hook makes it easy to carry to a high workplace.

Leading Technology, Superior Quality, Best Experience.

Empowering You to Work Smarter!

Dual-Voltage

• Expanded application

Dual-Stage Integrated Cylinder Design

• High ultimate vacuum
• High reliability

Lifting Hook

• Safe & convenient for roof top use

Internal Check Valve

• Prevent oil backflow

Forced Oil Circulation

• Improved efficiency and durability

 Specifications

• Power Supply:  115V / 60Hz, 230V / 60Hz
• Flow Rate:  7 CFM
• RLA:  4A (115V), 1.8A (230V)
• Ultimate Vacuum:  15 microns
• Pump Design:  Dual Stage, AC Motor
• Motor Power:  3/4 HP
• Inlet Port:  1/4", 3/8", 1/2" Flare
• Oil Capacity:  15 oz
• Dimensions:  14" x 5" x 11.3"
• Weight:  26 lbs

NP7DP Spec Sheet

NP7DP User Manual
