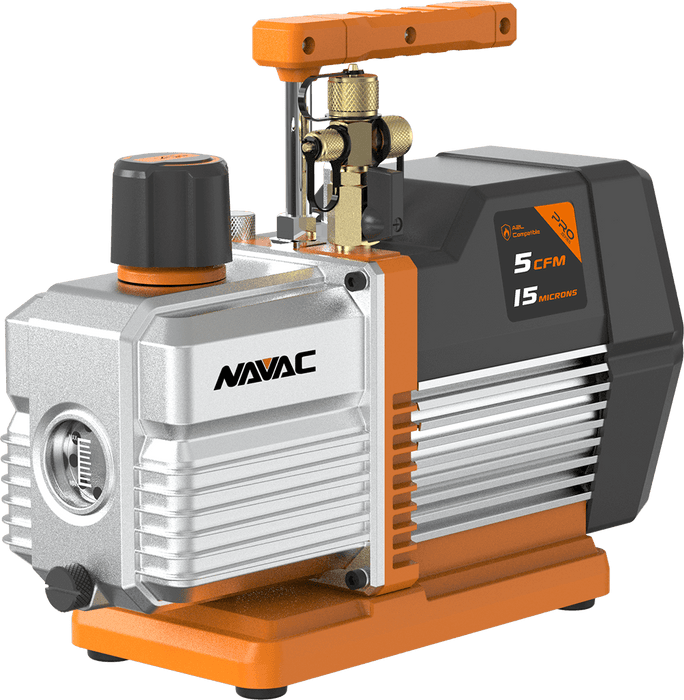

NAVAC NP5DP2 Vacuum Pump, 5 CFM, 2-Stage, 15 Microns, A2L, Pro Series

PERFORMANCE • RELIABILITY

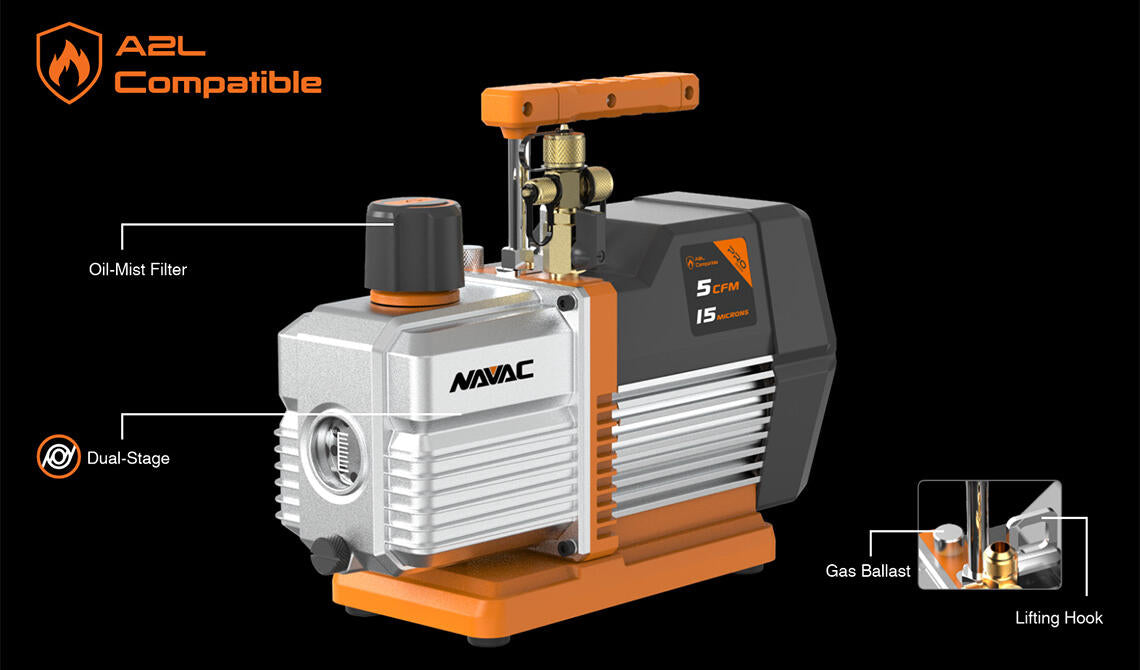

NAVAC NP5DP2 is an A2L compatible vacuum pump with expanded applications. Its dual-stage design delivers an ultimate vacuum down to 15 microns with unmatched reliability. Integrated cylinder structure coupled with forced oil circulation assures its high performance and reliability. The built-in hook makes it easy to carry to a high workplace.

Leading Technology, Superior Quality, Best Experience.

Empowering You to Work Smarter!

A2L Compatible

• Expanded Application


Internal Check Valve

• Prevent Oil Backflow


Dual-Stage Integrated Cylinder Design

• High ultimate vacuum
• High reliability

Forced Oil Circulation

• For fast and even oil distribution
• Improved efficiency and durability

Premium Pump Features

• Oil mist filter for noise and exhaust reduction
• Gas ballast for moisture management
• Manual ball valve for vacuum preservation

Lifting Hook

• Safe and convenient for roof top use


 Specifications

• Power Supply:  115V / 60Hz
• Flow Rate:  5 CFM
• Run Load Amps: 3.8A
• Ultimate Vacuum:  15 microns
• Pump Design:  Dual Stage, AC Motor
• Motor Power:  3/4 HP
• Inlet Port:  1/4", 3/8", 1/2" Flare
• Oil Capacity:  17 oz
• Dimensions:  14" x 5" x 11.3"
• Weight:  24.3 lbs
