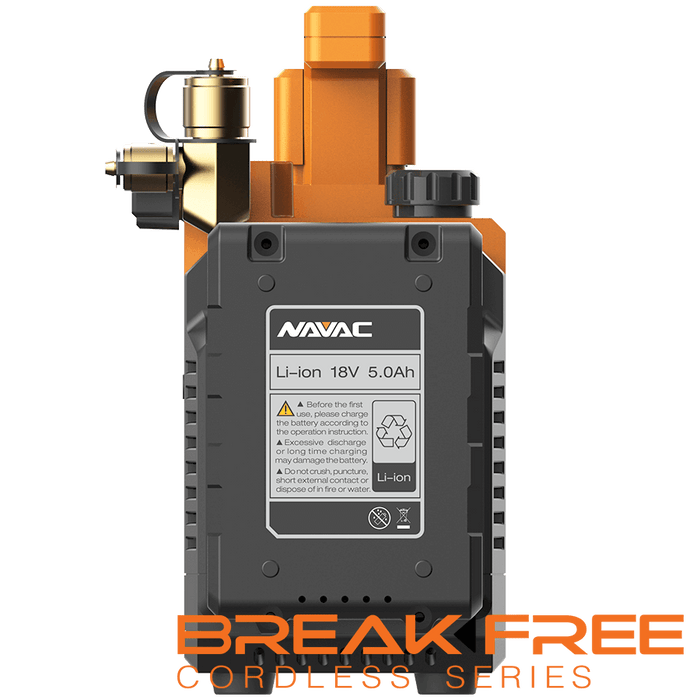

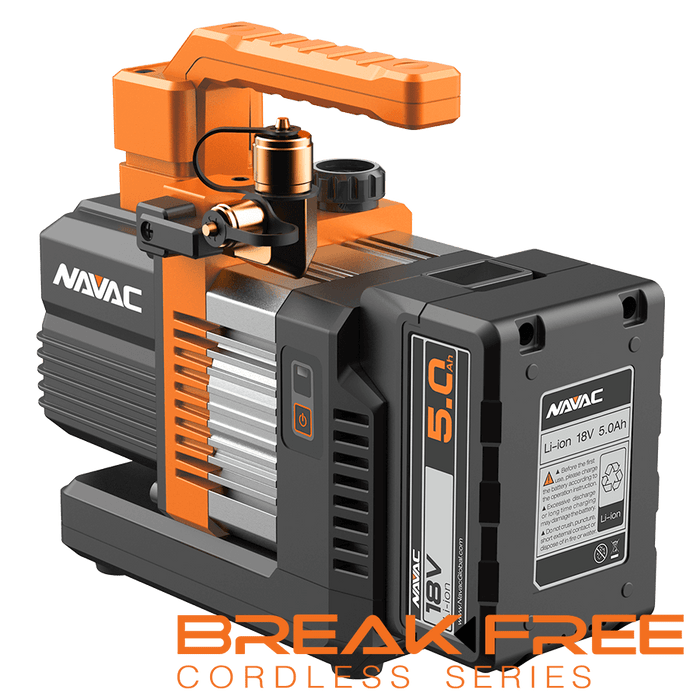

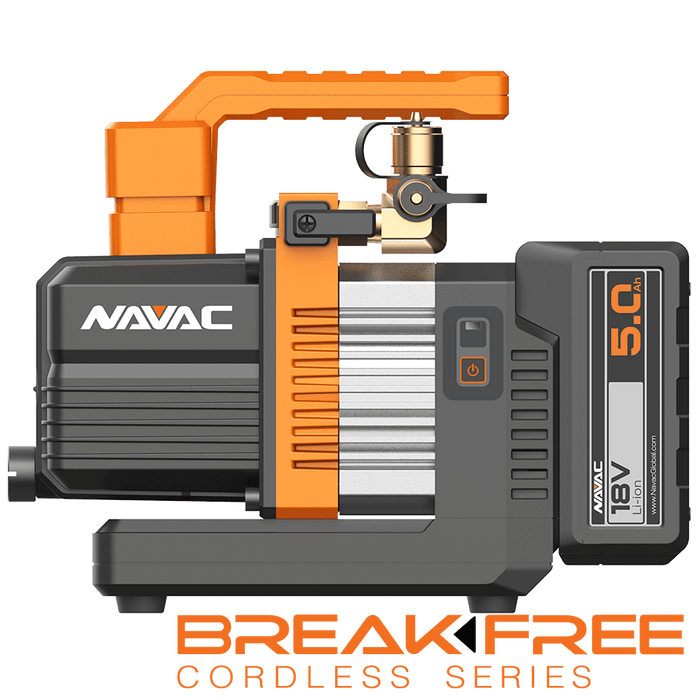

NAVAC NP2DLM 2 CFM BreakFree Series

Cordless Vacuum Pump with Battery, A2L Compatible

Cordless · Compact · Convenient

Featuring DC Technology, this lightweight, highly efficient vacuum pump is perfect for any job. With a high-performance lithium battery that provides higher capacity and longer running time, you can bring the NP2DLM cordless vacuum pump on any service call in any location. The NP2DLM is highlighted by its mobile design allowing it to be compact and easy to carry. Lastly, the isolation ball valve and twin cylinder make this vacuum pump easy to use, reliable and ensures maximum vacuum capacity.

Leading Technology, Superior Quality, Best Experience.

Empowering You to Work Smarter!

High Performance Lithium Battery

• High capacity
• Up to 1 hour running time

Twin Cylinder

• Ultimate vacuum down to 23 microns

Brushless DC Technology

• Light weight at 8.4 lbs
• Highly efficient

Compact Design

• Easy to carry
• Easy to store

Other Features

• Backflow prevention check valve
• Isolation valve

 Specifications

• Power Supply:  NB1, 18V, 5Ah Li-ion Battery
• Flow Rate:  2 CFM
• Ultimate Vacuum:  23 microns
• Pump Design:  Dual Stage
• Inlet Port:  1/4", 3/8" Flare
• Oil Capacity:  5.1 oz
• Dimensions:  9.2" x 3.5" x 7.5"
• Weight:  8.4 lbs with battery
• Accessories:  NB1 Battery, NC2 Charger, Carry Bag
