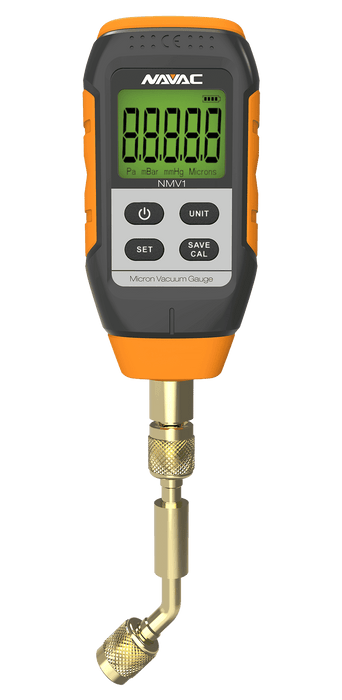

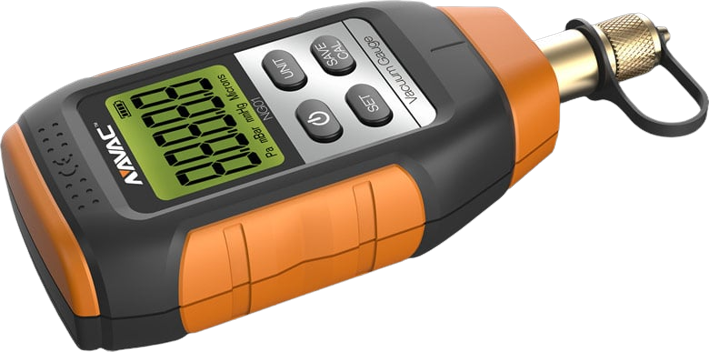

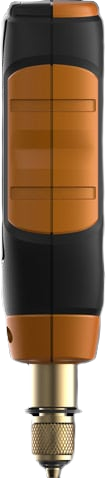

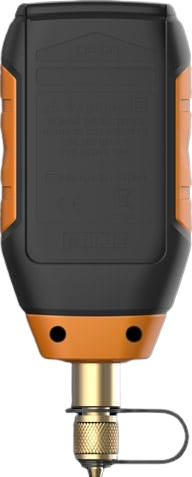

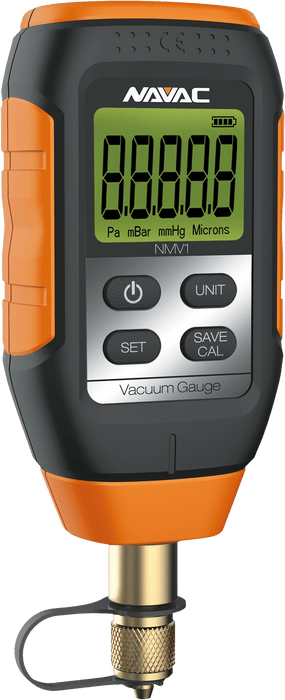

NAVAC NMV1 Micron Vacuum Gauge

Save 19%
Original price $207.00
Current price $167.48
Currently 3 in stock.

NAVAC NMV1 Micron Vacuum Gauge

Products usually ship within 1 business day.


It uses the Pirani high-precision vacuum sensor to precisely measure vacuum levels. Digital display affords a comprehensive view of vacuum conditions. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level decreases from the preset vacuum level, it will buzz rapidly and flash the backlit to warn of leaks.

Leading Technology, Superior Quality, Best Experience.

Empowering you to work smarter!

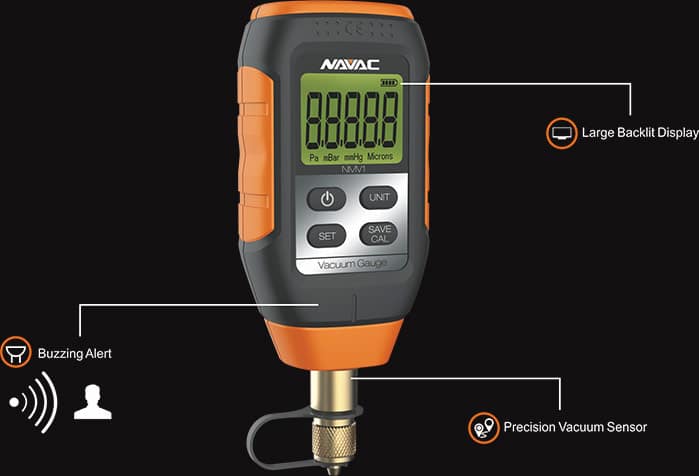

Pirani Vacuum Sensor

  • Professional grade
  • More precise

Large Backlit Display

  • Easy-to-read large digital display
  • Backlit for clarity
  • Auto power off

Buzzing Alert

  • Vacuum level reminder
  • Vacuum leakage warning

Ergonomic Design

  • Easy to carry



    • Maximum overload pressure:  14 psi
    • Range:  0-10000 Pa, 0-100 mBar, 0-75 mmHg, 0-75000 microns
    • Resolution:  0.01 (10 Pa), 0.0001 (10 mBar), 0.0001 (10 mmHg), 1 (30000 microns)
    • Accuracy:  15-750 micron:  ±5% of reading (at 68°F)
    • Operating temperature:  32-122°F (0-50°C)
    • Unit:  Pa, mBar, mmHg, microns
    • Sensor:  Pirani sensor
    • Buzzer alarm:  90 dB, shut down after 10 seconds
    • Weight:  4.5 oz


    Spec Sheet

    User Guide
