Klein Tools TI223 Mobile Thermal Imager For Android® / iOS®

Klein Tools Mobile Thermal Imager transforms smartphones into professional thermal imaging cameras with 19,200-pixel resolution. This compact thermal imager is designed to capture hot and cold spots from -4 to 752-Degree Fahrenheit in three color palettes. Features touch screen temperature modes including spot, high/low, and differential readout. Time-lapse video capability enables comprehensive documentation, and it fits phone cases up to 1/5-Inch with iOS® and Android® compatibility.

• High resolution 19,200 pixel thermal imaging delivers excellent quality for troubleshooting hot and cold spots
• USB-C compatibility works with iOS® and Android® devices fitting phone cases up to 1/5-Inch thick

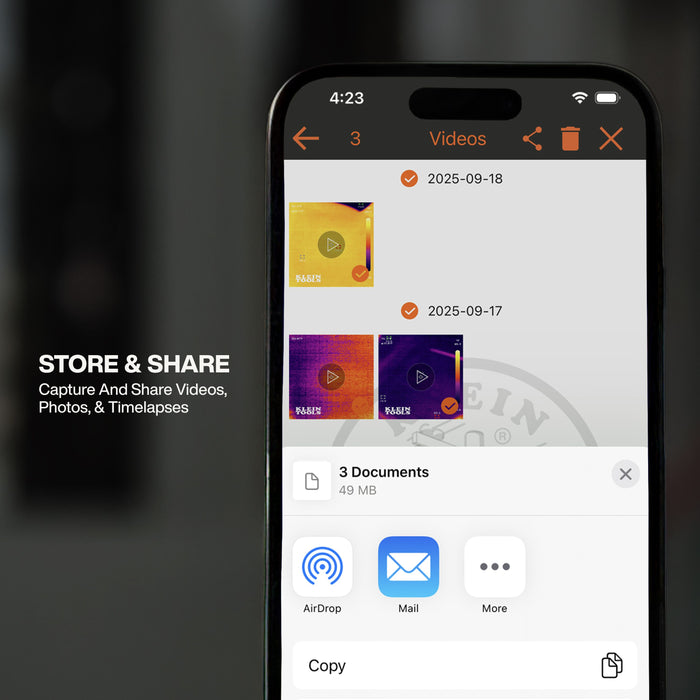

• Convenient capture and storage of thermal images and video including time lapse video feature

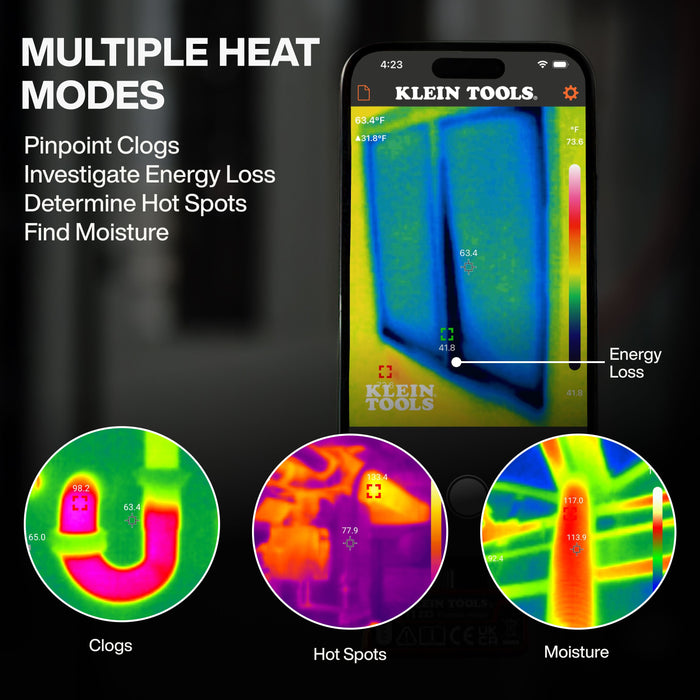

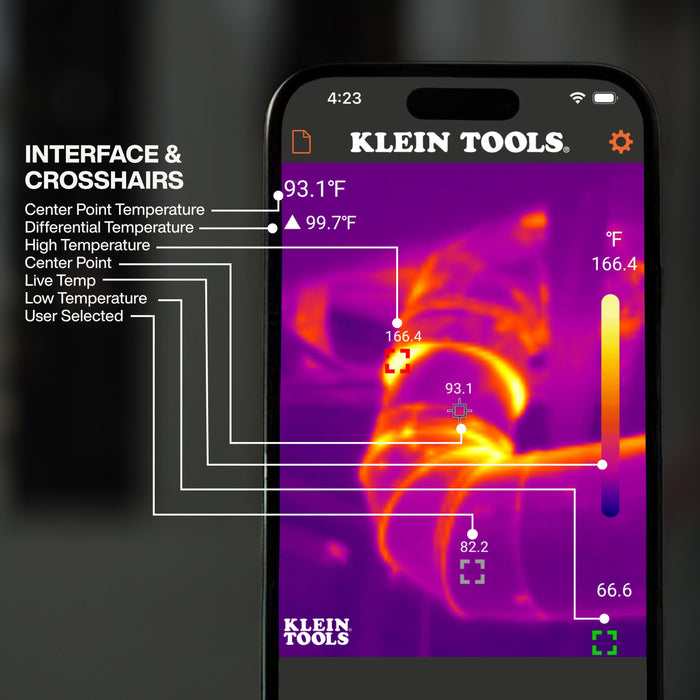

• Multiple temperature modes with touch screen spot temperature, high/low, and differential temperature readout

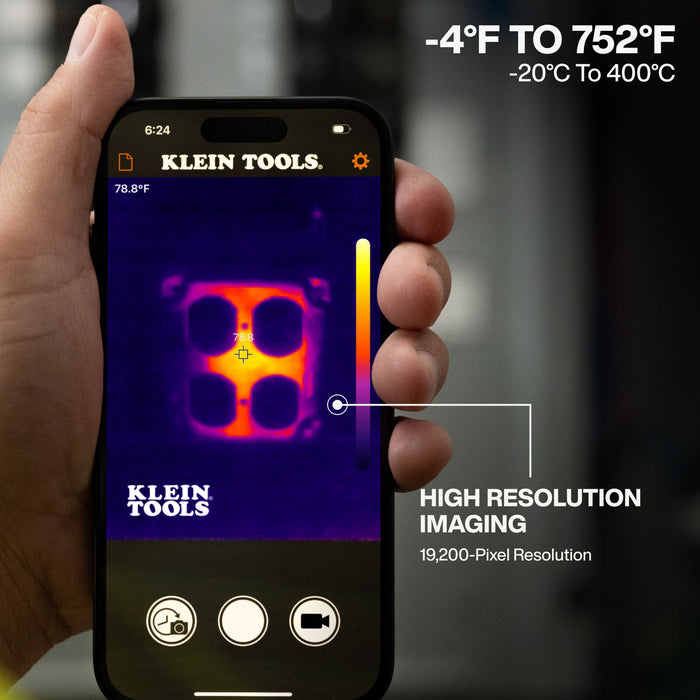

• Wide temperature range measures -4 to 752-Degree Fahrenheit in three color palettes
• Compact portable design enables easy transport and case compatibility for on the go thermal inspections


PRODUCT SPECIFICATIONS:

• Type: Thermal Imager
• Application: View Hot and Cold Spots For Instant Troubleshooting
• Special Features: High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes, No Batteries Needed
• Display: External Device
• Display Resolution: Dependent on Phone
• Picture in Picture: No
• Sensor Type: VOx Microbolometer
• Sensor Resolution: 19,200 Pixels
• Thermal Sensitivity: <50 mK at 25C
• Spectral Range: 8 to 14 μm
• Temperature Range: -4° to 752°F (-20° to 400°C)
• Accuracy: +/-2°C or 2% (Whichever is Greater); Not Calibrated Below -10°C (14°F)
• Field of View: 56° Horizontal, 71° Diagonal
• Laser Sighting: No
• Emissivity: 0.01 to 0.99, Adjustable
• Color Palettes: Ironbow, Rainbow, Grayscale
• Photo Capture: Yes
• Maximum Frames per Second: <9 Hz
• Memory: External Device
• File Formats: JPG

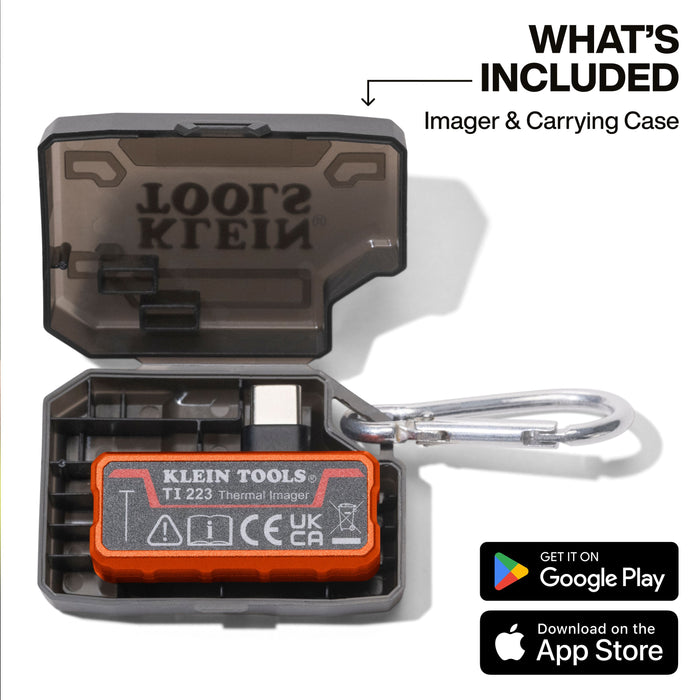

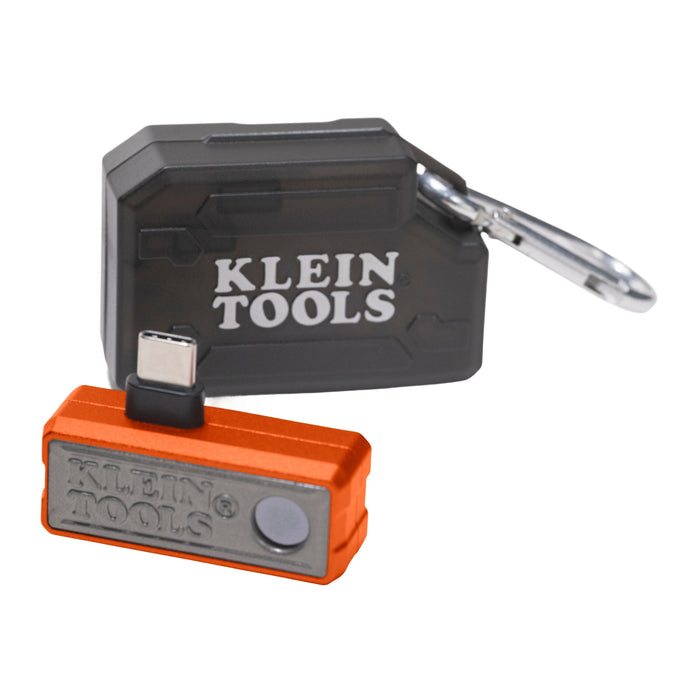

• Included: Thermal Imager; Hard Storage Case with Carabiner; Instructions

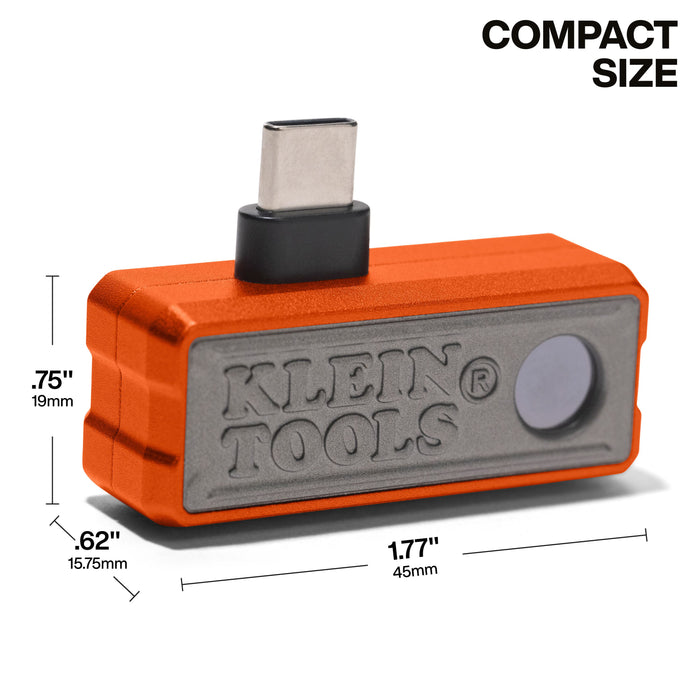

• Overall Length: 1.77'' (4.5 cm)
• Overall Width: 0.62'' (1.6 cm)
•  Overall Height: 1.23'' (3.1 cm)
• Material: Aluminum Housing, Electronic Components
• Standards: CE
• Weight: 0.9 oz (25 g)
