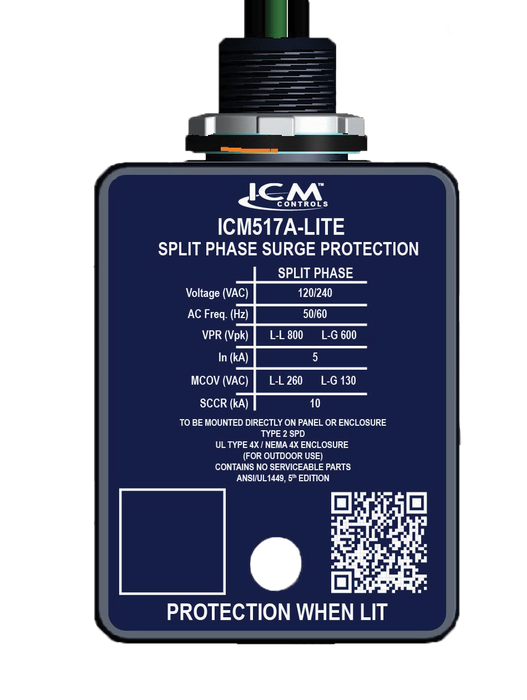

ICM Controls ICM517A-LITE Split-Phase, Type 2 Surge Protective Device

The ICM517A-Lite is a compact Type 2 Surge Protective Device (SPD) designed to protect valuable single-phase equipment by dissipating momentary voltage spikes and transient power surges. Providing commercial property owners with peace of mind, contractors with a reliable selling proposition and wholesalers with a high demand product. Applications include the protection of motors, electronics, air conditioning systems, appliances, refrigeration, HVAC equipment and more.

• Superior TMOV technology provides safe and reliable surge protection
• Built to withstand the high impact of a major surge event
• Ultrasonically welded enclosure for indoor/outdoor installation
• Featuring a thinner more compact profile
• Maximum surge capacity of 60,000 amps
• Easy-to-read status light, tells you when the control is protecting
• Easy installation
• Designed and assembled in U.S.A.
• UL Listed: E347279


SPECIFICATIONS:

• Service Voltage: 120/240 volt, single phase
• Maximum Surge Current: 60,000 Amps
• Maximum Energy Dissipation: 612 Joules
• Installation Point:
  – Electrical Panel
  – Electrical disconnect

• Diagnostics: Green light indicates surge suppression is present
• Enclosure: NEMA Type 4X waterproof enclosure
• AC Protection Modes: L-L, L-G

• Conduit Connection: 1/2″ trade size

• Dimensions: 3.75″L x 2.25″W x 1.02″H
