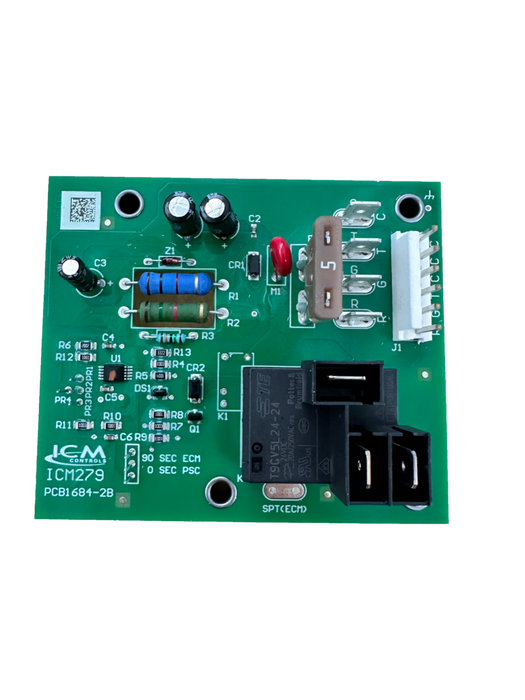

ICM Controls ICM279 Control Board -Carrier Replacement Control - Edmondson Supply

ICM Controls ICM279 Post-purge timer, Carrier HK61EA006 Fan Control Replacement

Save 4%
$37.91
$36.29
SKU ICM279
Currently 5 in stock.

ICM Controls ICM279 Post-purge timer, Carrier HK61EA006 Fan Control Replacement



Upon application of power to the G terminal, the ICM279 recognizes a call for the blower and a 1 second delay on make period begins. After the 1 second ON delay, the control energizes the blower motor. Upon removal of power from the G terminal, the board will keep the blower on for an additional 90 seconds (if not jumper is installed). At the end of the 90 second OFF delay, the blower will shut off.



  • Form, fit, and functional replacement for Carrier HK61EA006 and HK61EA002 boards
  • Heavy duty output relay for inductive loads
  • Purges ducts of residual air
  • Integral short cycle protection



SPECIFICATIONS

  • Voltage: 18-30 VAC
  • Contact Ratings:
    • 2HP @ 277 VAC*
    • 1HP @ 125 VAC
    • 2A Pilot Duty at 250VAC
      *when used in a system with a Listed Type 1, 2 or 3 SPD with a MCOV at least equivalent to the line-to-line voltage of the input system.
  • Fixed Time Delays:
    • ON Delay: 1 second
    • OFF Delay: 90 seconds (w/o jumper)



REPLACES

  • Carrier: HK61EA006 and HK61EA002





ICM279 Installation Instructions

ICM279 Data Sheet
