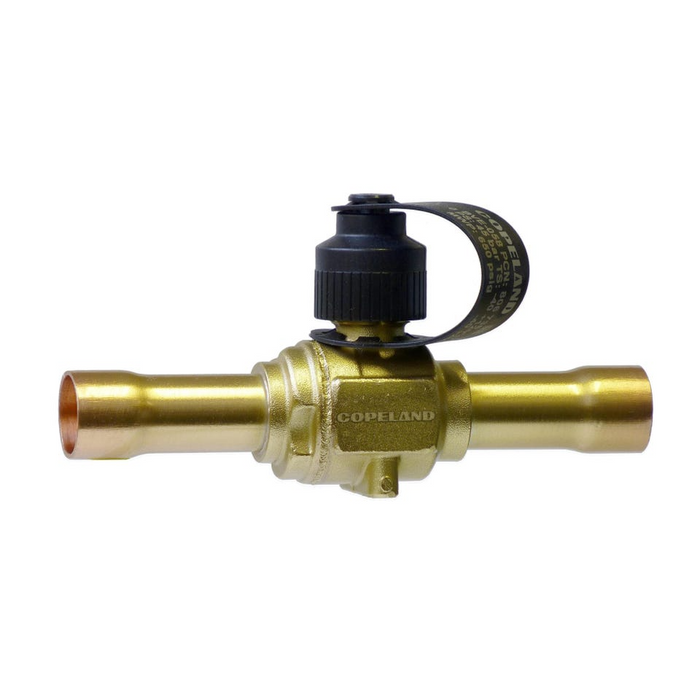

Copeland 806754 BVS-012 1/2" ODF Refrigeration Ball Valve with Access Port
Save 55%
Original price
$82.37
Current price
$37.32
SKU 806754
Copeland 806754 BVS-012 1/2" ODF Refrigeration Ball Valve with Access Port
The BVE/BVS Series welded refrigeration ball valves isolate suction, discharge, and liquid line pipework during maintenance shutdown periods.
Features
- Forged brass body
- Compact, lightweight, hermetic welded design
- Compatible with HCFC and HFC refrigerants/lubricants including R-410A and R-744
- Full port design
- Bi-directional flow characteristics
- Valve stem cap retained by strap attached to main body
- Integrated access port available on all sizes
- Low operating friction design
Specifications
| Body Material | Forged Brass |
|---|---|
| Compatible Refrigerants | R-1234yf |
| R-1234ze | |
| R-124 | |
| R-134a | |
| R-32 | |
| R-404A | |
| R-407C | |
| R-410A | |
| R-448A | |
| R-449A | |
| R-450A | |
| R-452A | |
| R-452B | |
| R-454A | |
| R-454B | |
| R-454C | |
| R-455A | |
| R-507 | |
| R-513A | |
| Connection | 1/2" ODF |
| Connection Size | 1/2" ODF |
| Connections | Extended Tubes, 100% Copper Connections |
| Flow Direction | biflow |
| Function | Ball valve with Schrader valve |
| Hazard Category | SEP |
| Maximum Working Pressure MWP [psig] | 650 |
| Medium Temperature Range [°F] | -40 to 250 (302 for short term) |
| Product Family | System Protectors & Moisture Indicators |
