DiversiTech CC-1 Safety Overflow Condensate Float Switch
$13.97
SKU CC-1

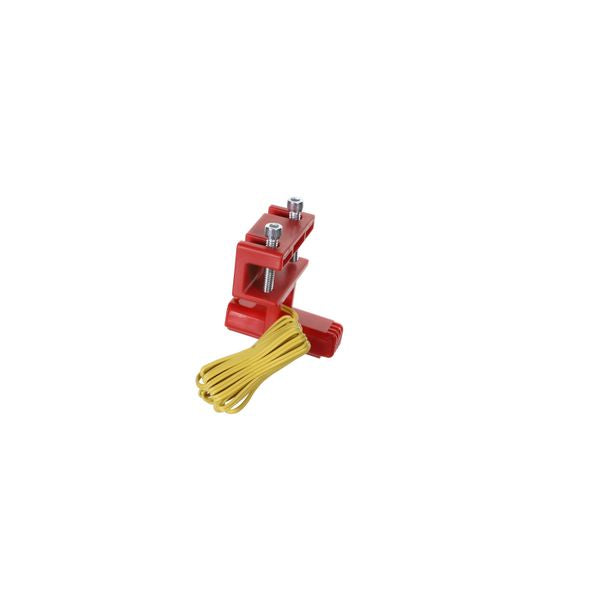

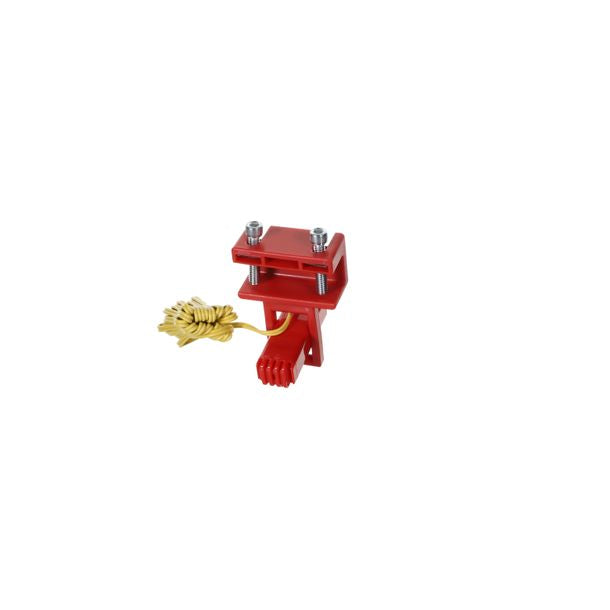

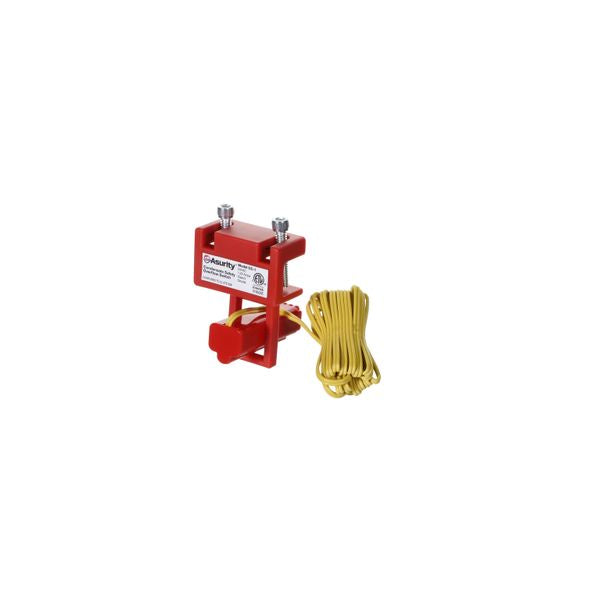

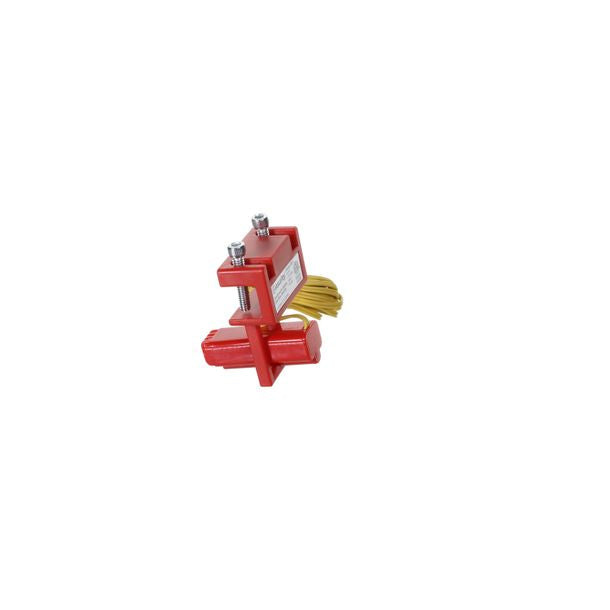

DiversiTech CC-1 Safety Overflow Condensate Float Switch
The Asurity® CC-1 Safety Overflow Pan Switch is a unique clamp-on float switch intended for HVAC drain pan installation (both plastic and metal pans). Large over-clamping area fits easily over the edge of all types of drain pans; separate float/probe assembly accommodates drain pans with sloped sides. Magnetically actuated switch opens when rising water presents a potential flooding condition.
Product Features & Benefits
- Position anywhere along secondary drain pan
- Adjustable activation height - minimum 1.5"
- Sensor assembly swivels to accomodate drain pans with sloped sides
- Clamps easily over the edge of all drain pan types, including formed plastic and galvanized sheet metal
Specifications
N/A
Pan-Mounted
Drain Pan Flood Prevention Switch
Yes
None
Class 2
2-Wire
No
1.5
24VAC
Normally closed (N/C)
No
Ducted
N/A
SPST
Not Applicable
Depth: 6.5 in
Width: 3.5 in
Height: 2.25 in
Weight: 0.45 lb
