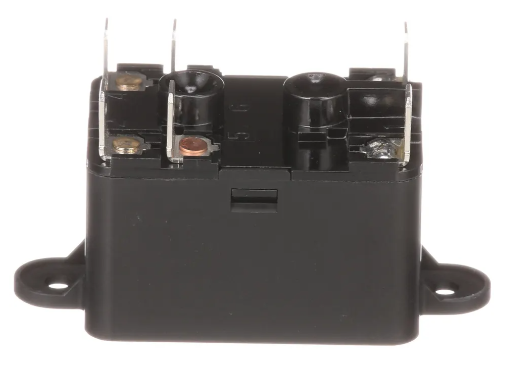

Copeland White Rodgers 90-380 Switching Fan Relay SPNO/SPNC
Save 59%
Original price
$22.69
Current price
$9.22
SKU 90-380S1
Copeland White Rodgers 90-380 Switching Fan Relay SPNO/SPNC
Heavy-Duty General Purpose Relay Operates in Any Position
Features
- Compact, totally enclosed design
- For heating and cooling applications and general switching
- Quiet, reliable and economical
Specifications
| California Prop 65 Cancer or Reproductive Harm: | Yes |
|---|---|
| Coil Resistance [ohm]: | 77 |
| Coil Voltage: | 24 Vac, 50/60Hz |
| 85% - 110% of nominal coil voltage | |
| Duty Cycle: | (Coil) Continuous |
| Electrical Connection: | 1/4" Quick Connect |
| Electrical Rating, Current [A]: | [Coil] 125 mA Nominal |
| Insulation, Temperature Rating [°C]: | [Coil] Class B |
| Model Number: | 90-380 |
| Power Consumption [VA]: | (Coil) 3VA Nominal |
| 4VA Inrush | |
| Mounting: | Wall Mount |
| Resistance [ohm]: | 77 |
| Switch Action: | SPNO/SPNC |
| Switch Type: | SPNO/SPNC |
