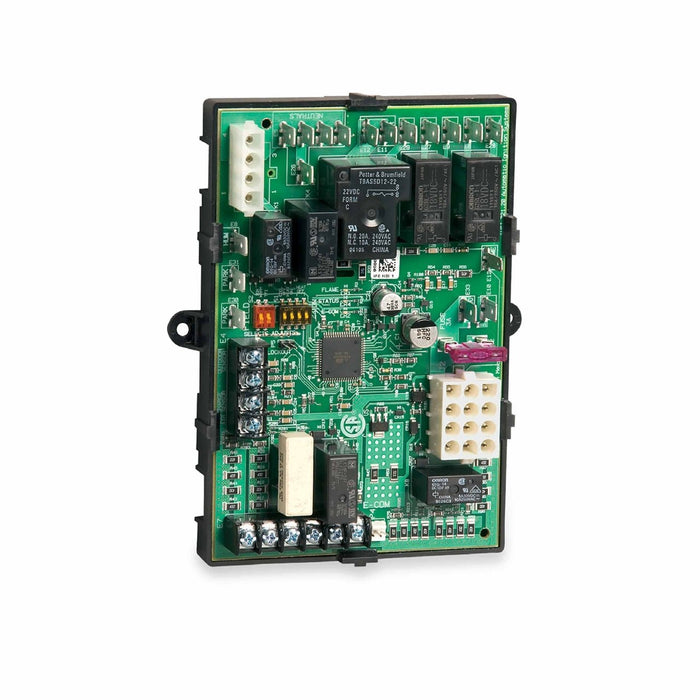

Resideo Honeywell S9200U1000/U Universal Ignition Integrated Furnace Control Board
$165.95
SKU S9200U1000/U
Resideo Honeywell S9200U1000/U Universal Ignition Integrated Furnace Control Board
Multiple Systems, One Control
These integrated furnace controls offer compatibility and diagnostics for multiple systems, replacing a large number of furnace control models in single-stage warm air furnaces. The furnace control works with 120 VAC hot surface igniters and includes instructions and special wire harnesses for easy replacement..
Our integrated furnace controls were designed to keep you on the job—not waiting for replacement parts—and moving forward by offering a board that works for nearly every system. The S9200 hot surface ignition integrated furnace control replaces over 195 existing furnace control models. With a 120 VAC hot surface igniter, this control board works in single-stage warm air furnaces. Includes easy-to-read instructions and special wire harnesses for a quick install.
- Replaces over 195 existing furnace controls
- Controls circulating fan motor based on appliance requirements with a conventional low voltage thermostat
- Cross reference and wire harnesses included
- Main burner ignition using a 120V hot surface igniter
- Flame rectification circuit to monitor flame presence
- Monitoring of system pressure switch, high temperature limit, and rollout functions
- Appliance operation and safety requirements controlled via microprocessor
- LED system status, performance, and diagnostic indication
- Twinning capability
Specifications
|
Application: |
Single stage warm air furnaces |
| Ignition System Type: |
Hot Surface Ignition |
| Ignition Type: | Direct Hot Surface Ignition |
| Frequency: | 60 Hz |
| Ignition Tial Time: | 4, 6, or 8 seconds |
|
Ignitor Electrical Rating: |
5 A resistive @ 120VAC |
| Ignition Trials to Lockout: | 3; 2 tries if flame is not sensed |
| Interpurge: | 60 Seconds |
| Postpurge: | 15 Seconds |
| Pre-Purge: | 30 Seconds |
| Flame Failure Response Time: | 2 Seconds max @ 1µA |
| Heat Fan Off Delay Timing: | 60, 90, 120, or 180 Seconds |
| Heat Fan On Delay Timing: | 30 or 60 seconds |
| Cool Fan Off Delay Timing: | 0 or 60 seconds |
| Cool Fan On Delay Timing: | 5 seconds |
| HSI Warmup Time: | 17/27 or 30/30 seconds |
| Compatible With: | 24Vac redundant, direct ignition gas control rated at 1.5A or less. Honeywell VR8205 recommended, Resideo VR8205 recommended |
| Product Height: | 4.13 in |
| Product Length: | 6.13 in |
| Product Width: | 1.5 in |
| Ambient Operating Temperature (Max): | 175° F |
| Ambient Operating Temperature (Min): | -40° F |
Cross Reference
| Goodman/Amana: | 1809913, B1809913, B18099-13, 102077-02, 102077-03, 10207704, 102077-04, 10207706, 102077-09, 10207714, 10207719, 102077-19, 10207701, 10207702, 10207703, 10207710 |
| ICM: | ICM280 |
| ICP: | 1010806, 1380686, 1380698, 1380699, 1380-686, 1380-699 |
| Lennox: | X445901, 1214201 |
| Nordyne: | 624557, 6245570, 624557-0, 624564, 6245640, 624591, 624591A, 624591-A, 624591-B, 624591-C, 624591-D, 624628, 624628-0, 6246310, 624631-0, 624631A, 624631-A, 624631-B, 710128A, 902378, 902696, 903106, CAR903106 |
| Other Manufacturers: | X13120666010, 10334901, 350486, 8068142, 8068561, 8068563, 99958174, 99958175 |
| Rheem/Robertshaw: | 62-24268-01, 62-24268-02, 62-24268-03, 695-200 |
| Texas Instruments: | 6DT-1, 6DT-2, 61F3, 41F-5, 50T35730, 50T35-730, 50T35743, 50T34-743 |
| Trane: | CNT1309, CNT1616, CNT1848, CNT1849, CNT2182, CNT2183, CNT2181, CNT2789, CNT03740, D330927P01, D330930P01, D330934P01, D340035P01, D340354P01, D340774P01, D340790P01, D341122P01, D341235P01 |
| United Technologies: | 1012-925A, 1012-925B, 1012-955A, 1012955A, 1012-83-9651B, 1012933D, 1012-933D, 1012-83-9336AHSC1, 1012-83-9337A |
| White-Rodgers: | 50A50-110, 50A50-111, 50A50-112, 50A50-113, 50A50-130, 50A50-131, 50A50-142, 50A50-143, 50A50-208, 50A50-210, 50A50-215, 50A50-216, 50A50-229, 50A50-230, 50A50-240, 50A50-241, 50A50-245, 50A50-286, 50A50-296, 50A50-298, 50A50-407, 50A50-408, 50A50-438, 50A50-472, 50A50-475, 50A55-143, 50A55-245, 50A55-250, 50A55-285, 50A55-286, 50A55-288, 50A55-288-05, 50A55-843, 50A50-571, 50A50-473, 50A50-474, 50A50-405, 50A50-406, 50A50-471, 50A55-438, 50A50-205, 50A50-206, 50A50-207, 50A50-285, 50A55-571, 50A55-474, 50A50-288, 50A50-295, 50A50-209, 50A55-241 |
| York: | 3101250000, 031-00662, 031-00662000, 031-00662-000, 031-00662-700, 031-01140-000, 031-01140-001, 31011140002, 031-01140-002, 031-01140-701, 031-01140-702, 031.01234.000, 031-01234-700, 031-01235-000, 031-01235-700, 031-01250-000, 031-01250-700, 031-01266-000, 031-01266-700, 031-01267-00, 031-01267-000, 031-01267-001, 031-01267-001A, 031-01284-000, 031-01933-000, 031-01972-000, 031-01973-000, 031-02166-000, 031-09166-000, 031-09167-000, 331-01933-000, 331-01972-200, 331-09167-000, 43101972100, 431-01972-100, 52537074000, 52537077000, 5253733900, CAR3310197220-0, CAR0310197300-0, CAR50A55843, G951ADB1401, G951ADB1401C, G951ADB-1401C, G951ADB1402, G951ADB-1402, G951AEB-1403, P03101267001, P031-01267-001, PTH031011400-00, 031-00662 |
