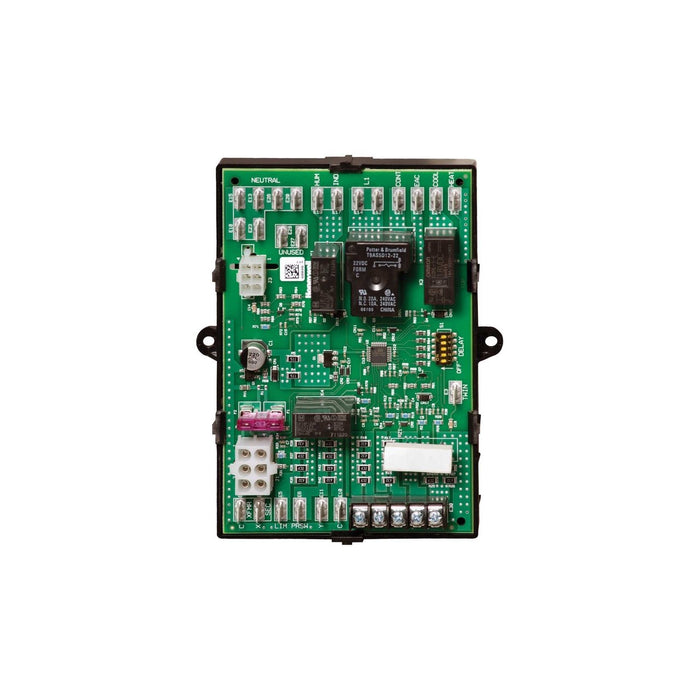

Resideo Honeywell ST9120U1011/U Universal Electronic Fan Timer Board
Resideo Honeywell ST9120U1011/U Universal Electronic Fan Timer Board
Combustion Blower and Circulating Fan in One
Replaces all others. The new universal platform that will not only integrate control of
all combustion blower and circulating fan operations in a gas warm air appliance but
also replace all other existing Resideo fan timer boards. It now has a replaceable fuse
and DIP switch with selectable heat and cool delay for added flexibility. This new fan
timer will also save you time and money with its diagnostic LED and continuous EAC
and HUM terminal connections. These new options and features make it the best fan
timer for your needs.
On the surface, the job of the ST9120U1011 is very simple: monitor temperature
demands and run the fan as needed, but the ST9120U1011 also handles all the little
complexities of the job. And best of all, it’s ready to work in just about every situation,
replacing more than 44 other models.
Smart Choice
The ST9120U1011 monitors the thermostat for heat, cool and fan demands, runs
the induced draft blower motor and runs the circulating fan (up to two speeds) as
needed. It also monitors limit switch strings and energizes ignition control. In short,
this one little unit packs a big punch, making it a smart choice for your applications
as well as your business.
Universal Compatibility
The ST9120U1011 will replace all existing Resideo ST9120's, ST9101's, ST9141's and ST9160's. Save room on your truck with a supply of ST9120U1011 timers and know you’re covered. You’ll save time by not having to search for the right model and you’ll enjoy a truck that’s easier to organize.
- Replaces over 195 existing furnace controls
- Controls circulating fan motor based on appliance requirements with a conventional low voltage thermostat
- Cross reference and wire harnesses included
- Main burner ignition using a 120V hot surface igniter
- Flame rectification circuit to monitor flame presence
- Monitoring of system pressure switch, high temperature limit, and rollout functions
- Appliance operation and safety requirements controlled via microprocessor
- LED system status, performance, and diagnostic indication
- Twinning capability
Specifications
| Application: | Integrates control of combustion blower and circulating fan operations for a gas warm air appliance |
| Product Features: | Replaces 40+ existing Resideo and Honeywell electronic fan timers, Replaceable fuse, DIP switch selectable heat and cool delay on and off times, Electronic air cleaner and humidifier terminal connections, Continuous low speed indoor air circulation |
| Approvals and Standards: | UL Listed: Report MP466, CSA Certified: File No. LR95329-41 |
| Postpurge: | 5 sec |
| Heat Fan Off Delay Timing: | Adjustable 60, 120, 150, or 180 seconds, Set at 120 seconds |
| Heat Fan On Delay Timing: | Adjustable 30 or 60 seconds, Set at 30 seconds |
| Cool Fan Off Delay Timing: | Adjustable 30 or 60 seconds, Set at 30 seconds |
| Cool Fan On Delay Timing: | Adjustable 4 or 30 seconds, Set at 4 seconds |
| Air Cleaner Load Rating: | 0.8A maximum combined load at 115 VAC, 0.4A maximum combined load at 230 VAC |
| Thermostat Load Rating: | 0.10A plus ignition system load |
| Combustion Blower Load Rating: | 1.5A full load, 10A locked rotor at 115 Vac, 0.75A full load, 5A locked rotor at 230 Vac (Reduce full load rating by humidifier [HUM] load.) |
| Circulating Fan Load Rating for Heat-Cool Speed: | 15A full load, 30A locked rotor at 115 Vac, 7.5A full load, 15A locked rotor at 230 Vac (Reduce full load rating by electronic air cleaner [EAC] load.) |
| Circulating Fan Load Rating for Optional Continuous Speed: | 8A full load, 16A locked rotor at 115 Vac, 4A full load, 8A locked rotor at 230 Vac |
| Supply Voltage: | Low Voltage: 18 to 30 Vac, Line Voltage: 120V (97-132 Vac), Line Voltage: 240V (196 – 264 Vac) |
| Electrical Ratings: | 18 to 30 Vac |
| Power Supply Frequency: | 50 Hz, 60 Hz |
| Operating Voltage: | 18 to 30 Vac |
| Product Height: | 1.5 in |
| Product Length: | 5.75 in |
| Product Width: | 4.5 in |
| Ambient Operating Temperature (Max): | 175° F, 79° C |
| Ambient Operating Temperature (Min): | -40° F, -40° C |
| Operating Relative Humidity (Max): | 95% Rh, non-condensing |
Cross Reference
|
Armstrong: |
ST9120A1006, ST9120A2004, ST9120C2028, ST9160A1002, ST9160B1068 |
| Bard: | ST9120C3018 |
| Consolidated Industries: | ST9141A1002, ST9141A1028, ST9141B1001, ST9150A1003 |
| Ducane: | ST9120B1005, ST9120C2010, ST9150B2026, ST9160B1076 |
| Goodman: | ST9120D3009 |
| ICP: | ST9120C3000, ST9120C4008, ST9120C4016, ST9120C4040, ST9120C4057, ST9120C5005, ST9120C5013, ST9120G2008, ST9120G2016, ST9120G4004, ST9120G4012, ST9150B2018, ST9160B1043, ST9160B1050, ST9160B1084 |
| Rheem: | ST9101A1006, ST9101A1014 |
| Skymark: | ST9120G2024, ST9120G2032 |
| Snyder General: | ST9120C1012 |
| York: | ST9120C2002 |
| Other Brands: | ST9101A1022, ST9120G4038, ST9120U1003, ST9150B2000, ST9150B2034, ST9160B1001, ST9160B1019, ST9160B1027, ST9160B1035, ST9160C1000, ST9160C1018 |
