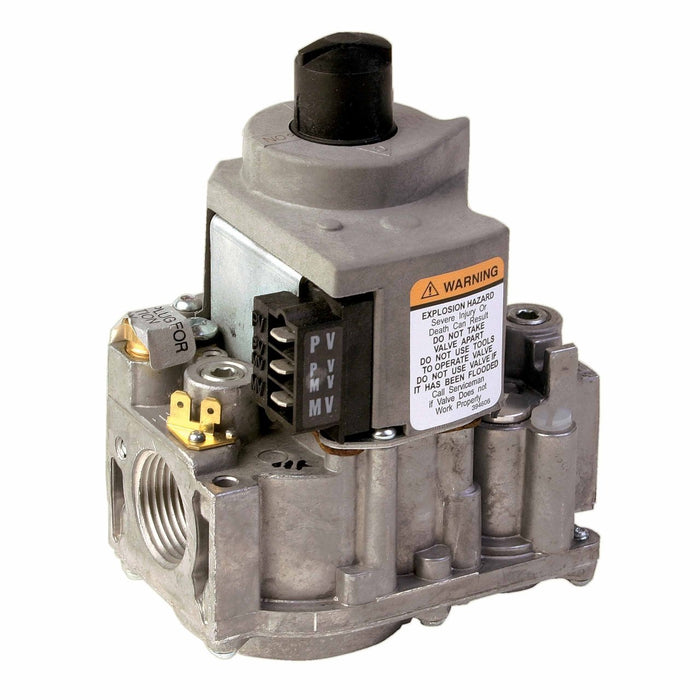

Honeywell Resideo VR8345M4302/U Universal Electronic Ignition Gas Valve
$155.95
SKU VR8345M4302/U
Honeywell Resideo VR8345M4302/U Universal Electronic Ignition Gas Valve
Extremely Compact For Work In Small Spaces
The universal electronic ignition gas valve by Resideo helps you be ready for work on any system—intermittent pilot, direct spark ignition, or hot surface pilot—with just one gas valve. The high BTU/H capacity and multipoise mounting make this valve even more versatile for the work you encounter each day.
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities of 30 to 415 cfh.
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter.
- Replaces many IP, HSI, or DSI gas control.
- For use with natural or manufactured gas or LP gas.
- Includes converter kit to adapt from natural to LP gas.
- Compact size.
- All adjustments and wiring connections accessible from top of control.
- Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules.
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper.
- Internal inlet screen blocks contaminants in gas line from entering valve.
Specifications
|
Application: |
Single Stage |
|
Dimensions: |
5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep |
| Includes: | Two 3/4 x 1/2 in. reducer bushings; Natural to LP Conversion Kit |
| Mounting: | 0° to 90° in any direction from the upright position of the gas control knob, including vertically |
| Frequency: | 50, 60 Hz |
| Electrical Connections: | 1/4 in. quick connect male terminals |
| Voltage: | 24 Vac |
| Operating Temperature Range (F): | -40 F to +175 F |
| Body Pattern: | Straight-Through |
| Opening Characteristics: | Standard Opening |
| Pressure Ratings (psi): | 1/2 psi |
| Inlet/Outlet Size (in.): | 3/4 in. x 3/4 in. |
| Pilot Gas Outlet: | Compression fitting for 1/4 in. OD tubing |
| Type of Fuel: | Natural (LP with included conversion kit) |
| Capacity (kBtuh): | At 1 in. wc p.d.-- 300,000 BTUh: 30,000 BTUh minimum: 415,000 BTUh maximum Natural Gas |
| Pressure Regulator: | Standard |
| Pressure Regulator Setpoint (in. wc): | 3.5 in. wc |
| Ignition Type: | Direct Ignition; Intermittent Pilot |
Cross Reference
| Honeywell/Resideo: | VR8204A1201, VR8204A1219, VR8204A2001, VR8204A2035, VR8204A2043, VR8204A2076, VR8204A2142, VR8204A2175, VR8204A2183, VR8204A2241, VR8204A2803, VR8204A2852, VR8204M1075, VR8204M1091, VR8204M1232, VR8205A2008, VR8205A2024, VR8205A2081, VR8205M1080, VR8205M1106, VR8205M2310, VR8205M2443, VR8205M2450, VR8205M2476, VR8205M2823, VR8245M2530, VR8304M2501, VR8304M3509, VR8304M4002, VR8304M4507, VR8304M4804, VR8305M3506, VR8305M4066, VR8305M4165, VR8305M4231 |
| Robertshaw: | 720-051 (7200DER), 720-079 (7200IPER), 720-080 (7200IPER-LP), 722-051 (2000DERHC), 722-079 (2000IPERHC) |
| White Rodgers: | 36C68-423, 36E01-204, 36E01-205, 36E01-206, 36E01-305, 36E22-214, 36E36-304, 36E93-304, 36G22-214, 36H32-423, 36J22-214 |
