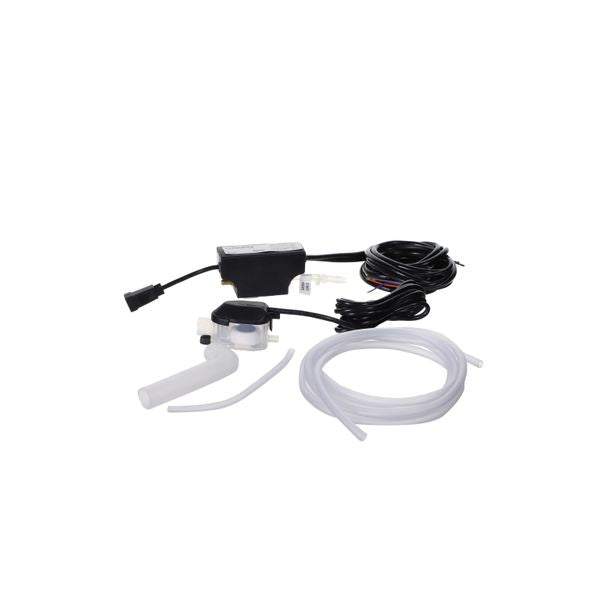

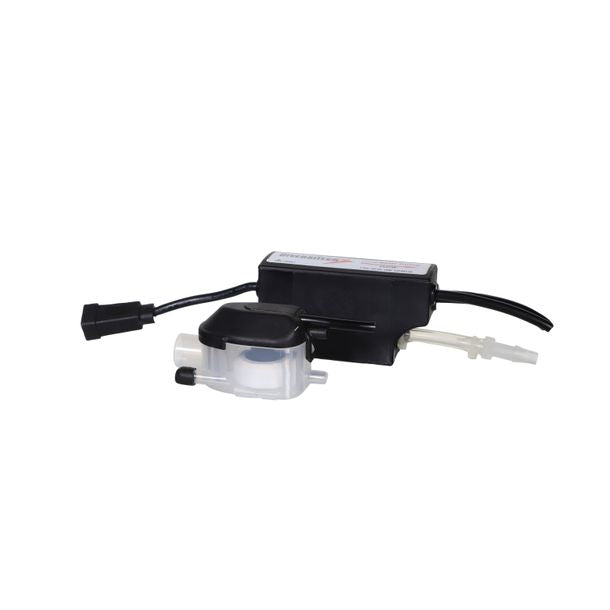

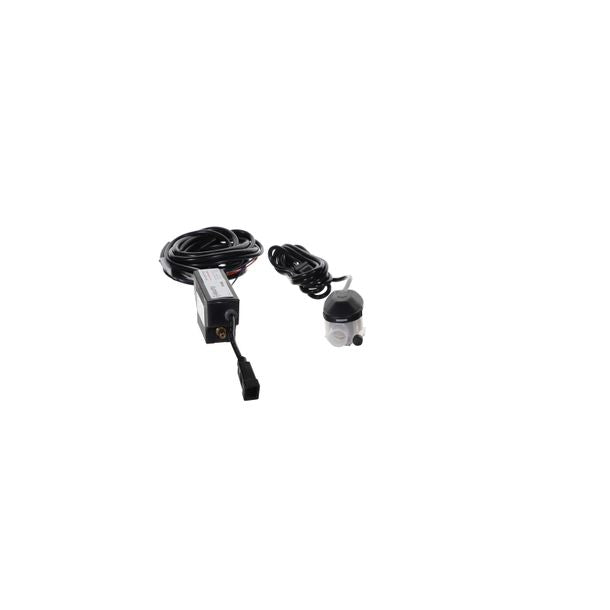

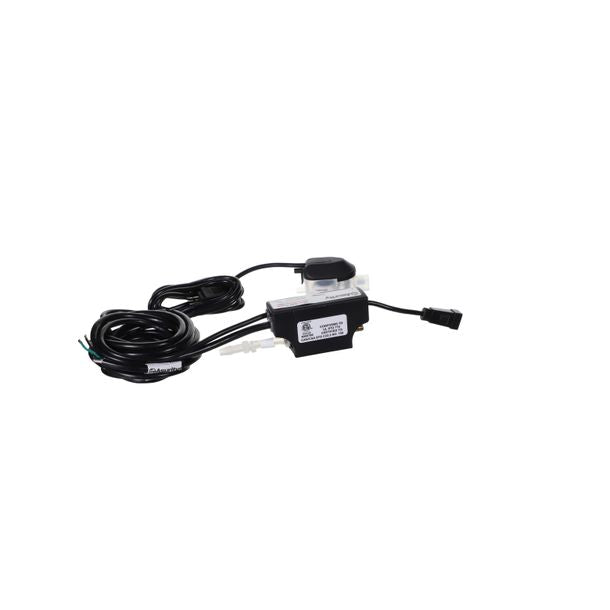

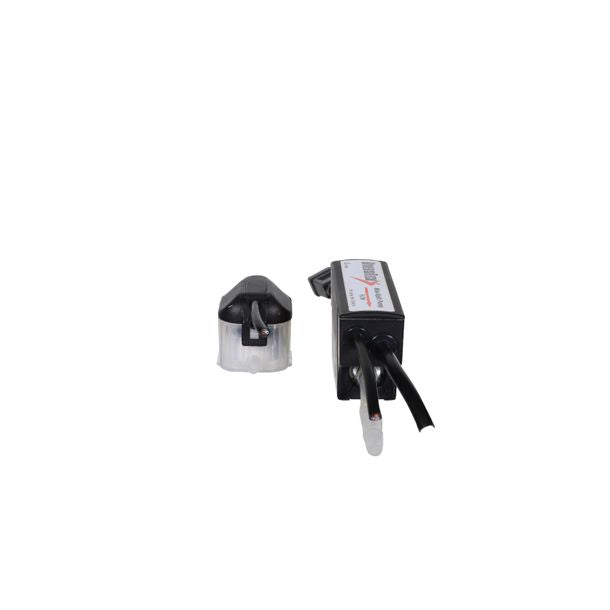

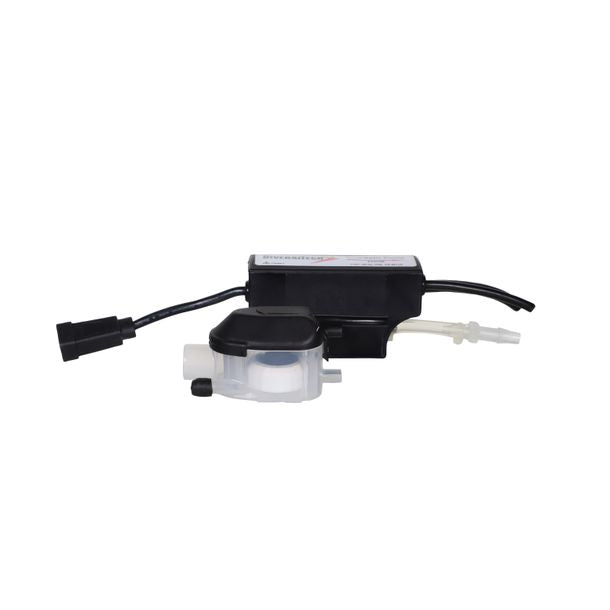

DiversiTech CP-M115 Mini-Split Condensate Pump, 115V
$124.29
SKU CP-M115
DiversiTech CP-M115 Mini-Split Condensate Pump, 115V
The Asurity™ CP-M115 Mini-Split Condensate Pump is a quiet, compact, and feature rich pump. The 120 volt pump's low profile fits easily into most line set covers and cassettes.
- Compact Size
- Flexible installation options. Fits inside line set covers or inside cassette
- Clear Reservoir
- Dual Outlet Reservoir
- Reservoir Mounting Plate
- Up to 6' Suction Lift - 24' Total Lift
- For systems up to 2.8 tons (34,000 BTUs - 10kW)
- Quiet, <21dB(A)
- Thermally Protected
- Built-In Overflow Switch - SPDT Alarm Circuit
- ETL Listed
- Water Resistant Sensor Cable
SPECIFICATIONS
| Color | N/A |
|---|---|
| Volts | 115 |
| Application | Internal |
| Hertz | 60 |
| UL Listed | Yes |
| Discharge Line (In.) | 1/4 |
| Floatless Sensor | No |
| High Level Switch | Yes |
| Input Type | N/A |
| Max Flow Rate (GPH) | 4 |
| Max Lift Height (Ft.) | 24 |
| No. of Inlets | N/A |
| Self-Cleaning | No |
| Variable Speed and Lift | No |
| Max Unit Size (Tons) | 2.8 |
| Overflow Switch Circuit Classification | Class 1 |
| Safety Circuit Rating (A) | 5 |
| Sound Level dB(A) @ 3 Ft. | <21 |
| Suction Lift Height (Ft.) | 6.6 |
| Ducted or Ductless | Ductless |
| BTU / Hr Input | N/A |
| A2L Certified | Not Applicable |
