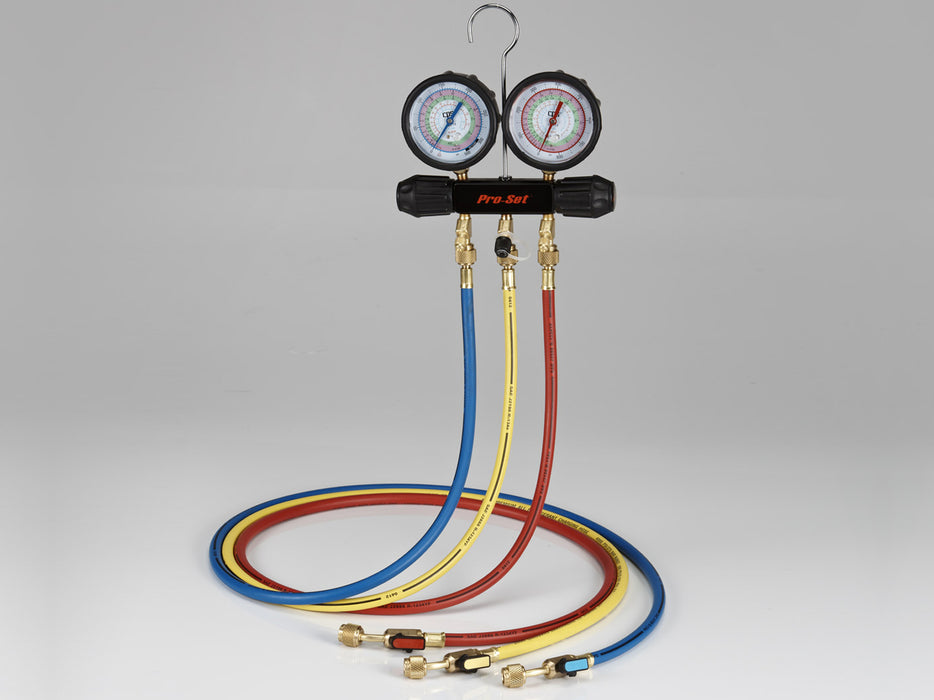

CPS Products MT2H7P5E The Workingman's Choice™ Manifold and Gauge Set

MT2H7P5E: The Workingman’s Choice™ series 2 valve anodized aluminum block body with 1/4″ SAE 45° fittings, Triple Seal™ piston valves, sure-grip rubber over metal valve handles, easy-to-read 3-1/8″ (80mm) Class 1.0 accuracy gauges, protective gauge boots, extra access port in the center with Schrader® valve and hanging hook.

• Body Type: 2 valve anodized aluminum body with 1/4″ SAE fittings
• Valve Type: Triple Seal™ piston valves
• Gauge Type: 3-1/2″ (80mm) Class 1.0 with internal silicon dampening cup for Flutter-Free operation
• Refrigerant Scales: R-134a, 22, 404A, 410A
• Pressure Scales: PSI
• Temperature Scales: °F
• Hoses: Premium 5 ft Pro-Set® hoses with 1/4″ SAE 45° ball valves on ends

MT2H7P5E Manual
