Copeland White-Rodgers 50E47U-843 Universal Non-Integrated Hot Surface Ignition Module
Save 56%
Original price
$457.57
Current price
$200.19
SKU 50E47U-843

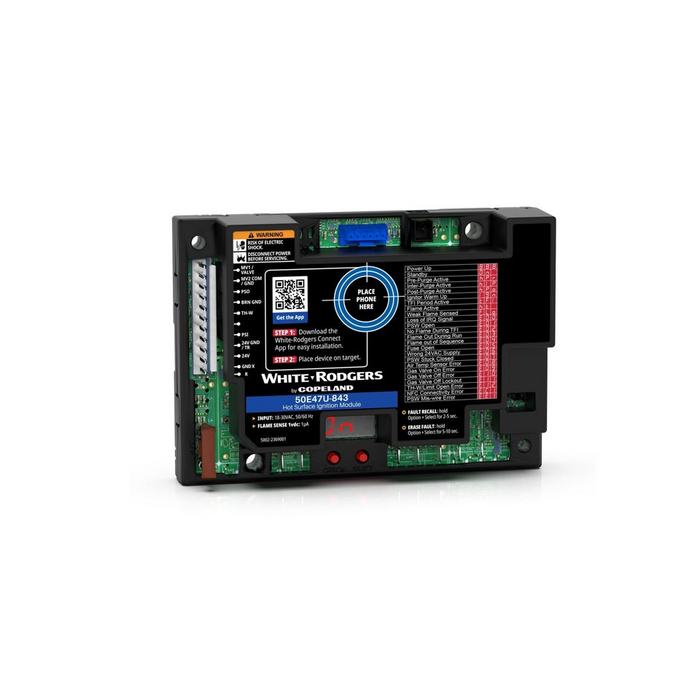

Copeland White-Rodgers 50E47U-843 Universal Non-Integrated Hot Surface Ignition Module
Universal hot surface ignition module. Designed to replace 24V, 120V or 240V non-integrated Hot Surface Ignition (HSI) modules in a wide variety of heating applications. Replaces hundreds of part numbers including Fenwall, Honeywell, UTEC, ICM and Robertshaw.
Features
- Compatible with 24V, 120V and 240V ignitors
- Universal replacement for Fenwal, Honeywell, UTEC, ICM, White-Rodgers, and Robertshaw
- Energizes an inducer motor and monitors a pressure switch
- Use with the White-Rodgers Connect app to simplify configuration without power, prior to install
- See operation status, diagnostics and real time flame current with the on-board digital display which also provides alternate configuration,

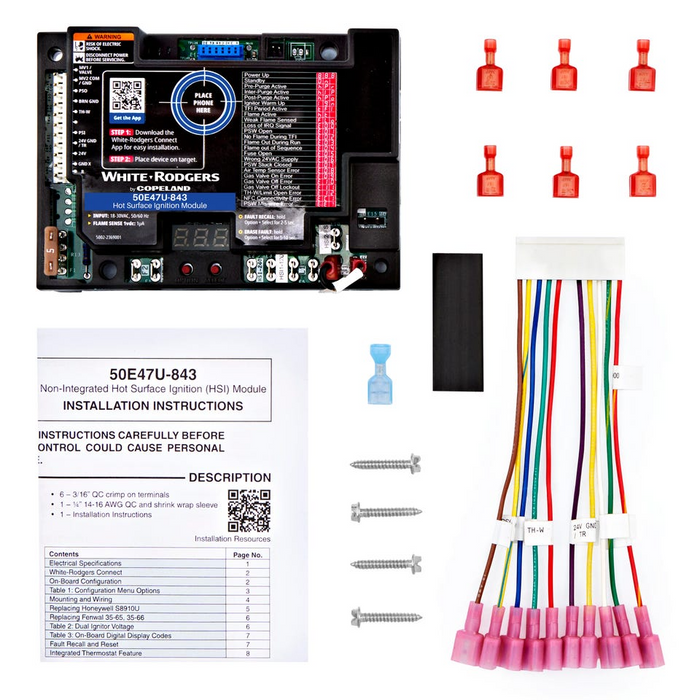

- Easy-install harness converts old board wiring
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
Specifications
| Ambient Operating Humidity | 5 to 95% RH |
|---|---|
| Brand/Part Number Replaced | Carrier, Goodman, Lennox, Trane, York, Pentair, StaRite, Jandy |
| California Prop 65 Cancer or Reproductive Harm | Yes |
| Certifications | c-CSA-us |
| Connection | Thermostat Inputs TH(W),TR(C) |
| Electrical Rating | (Line Voltage Circuit) 120 Vac, 50/60Hz |
| (Low Voltage Circuit) 24 Vac, 50/60Hz | |
| Ignition Type | HSI |
| Ignitor Voltage | 24, 120, 240 Vac |
| Model Number | 50E47U-843 |
| Mounting | Surface mount or 4" x 4" junction box |
| Operating Temperature Range [°F] | -40 to 175 |
| Replacement Type | Universal Replacement |
| Stages | Single Stage |
Cross Reference
|
Baso: |
Series: BGH |
|
Blodgett: |
30851, R5925, 41802 |
| Carrier: | 1001346, 1380694 |
| Cleveland: | KE53469-5, KE53469-7 |
| Fenwal: | Series: 35-65, 35-66 |
| Goodman: | C6411102, B1370726 |
| Groen: | 162283, 155489 |
| Honeywell/Redideo: |
Series: S890C, D, G, H Series: S8910U Series: S89C, D, G, H, J |
| ICM: | ICM283 |
| LBC Bakery: | 80300-18, 80300-20 |
| Polaris: | 100093697, 100093696, 6907309 |
| Robertshaw: |
Series: 780-780, -784, -785, -786, -787, -788, -789, -790 Series: 832-000, -005 Series: HS780-17NL, -17NR, -17PL, -17PR, -34NL, -34NR, -34PL, -34PR |
| Southland Range: | 1175723, 9024-2 |
| Trane: | CNT1316, 1690, 1691, X13130193-04, 437-01, 437-03, X13130437010, 0720, 7030, 7040, 7060, 7080 |
| UTEC: | 1018-525, 1018-504, 624-421-B, 1018-524, 1018-500, 1018-501, 120-09298C |
| Whirlpool: | 99796380, 99905232 |
| White-Rodgers: | Series: 50E47, 50D47, 50G47 |
| York: | 025-25436-000, 025-25436-700, S1-1474-0061/A, S1-1474-0041 |
